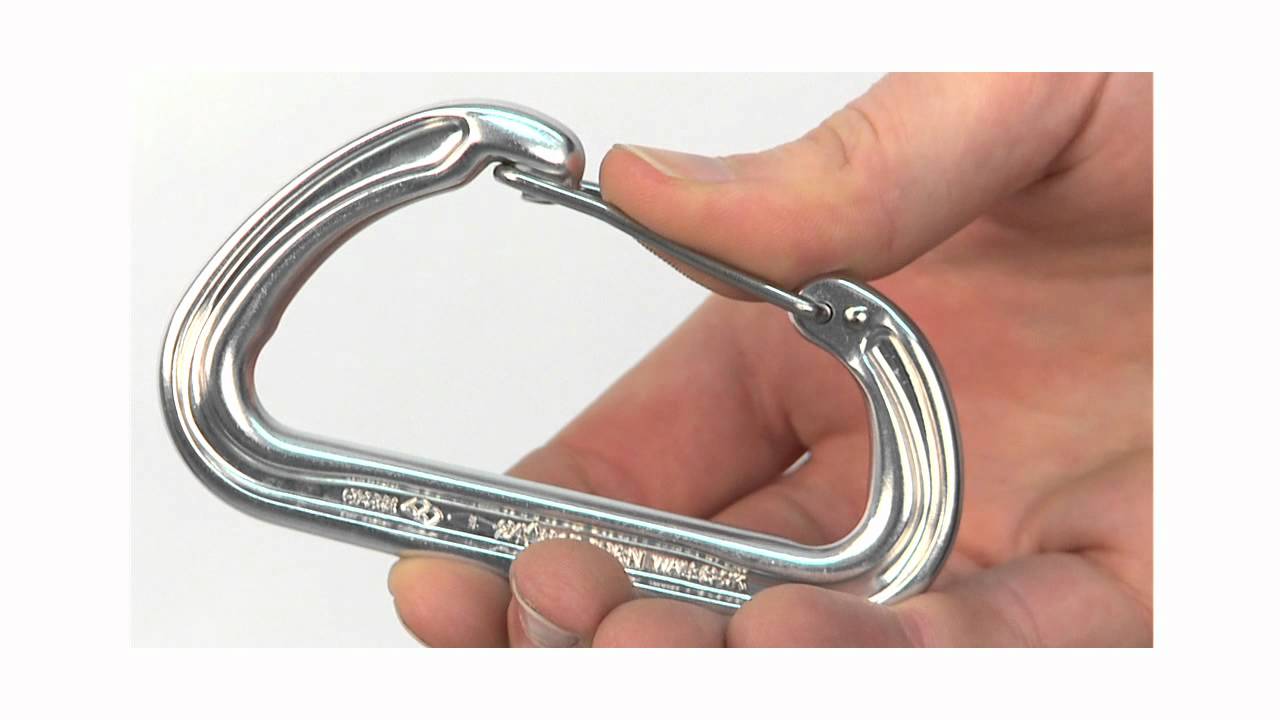

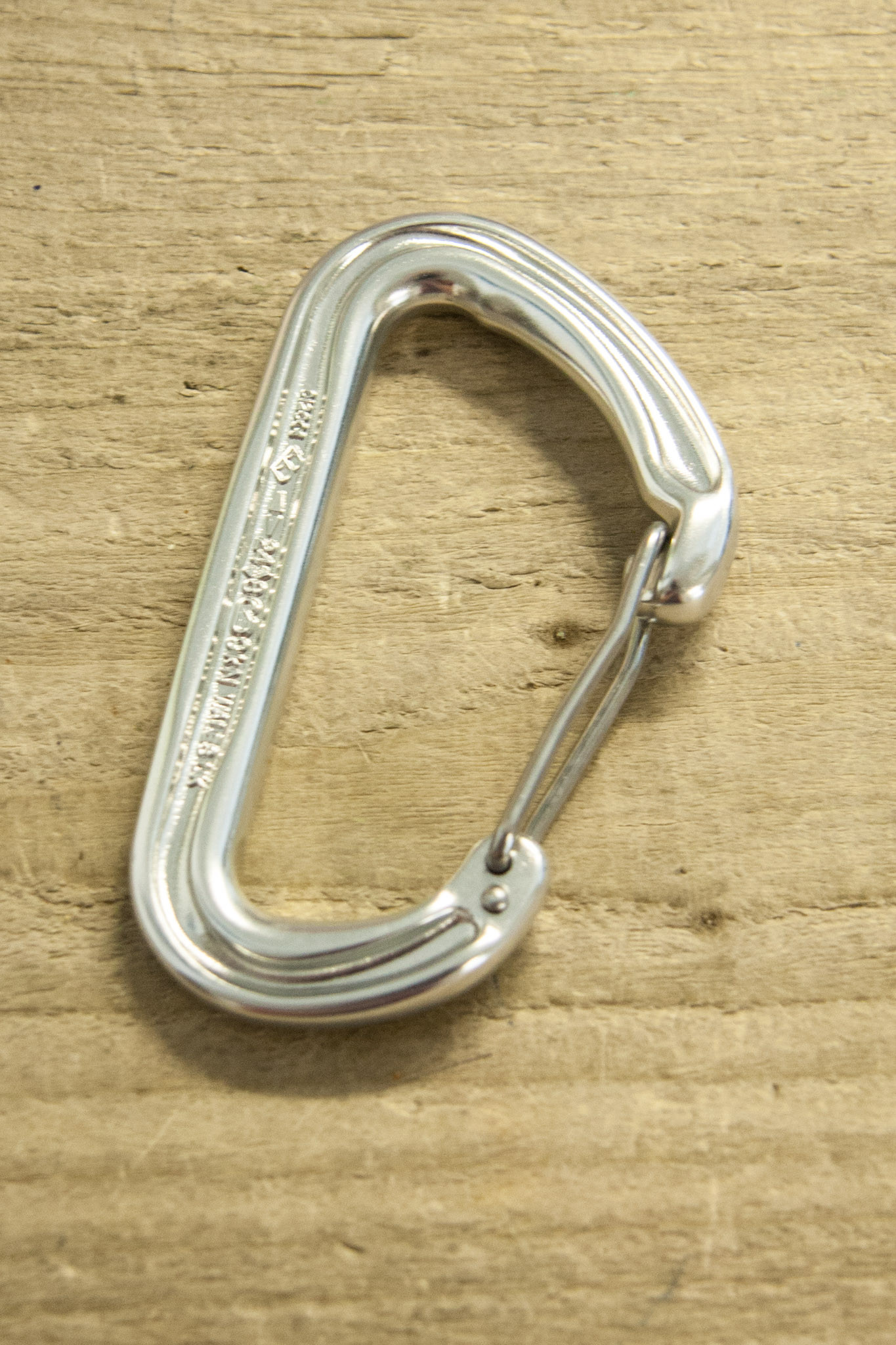

SPECTRE 2

Phantom’s big brother – the perfect option if you prefer the handling qualities of a larger biner. It’s certainly big enough to work well if you are wearing winter gloves.

• Classic all round wire gate biner
• Lightweight I-Beam construction
• Safer, deeper rope basket
• Easy to handle back shape
• Generous 8.5mm rope radius
• Modified nose profile to protect the gate
• Available as the Spectre 2 Colourpack, which includes 5 different colours
• Available as an 11mm dyneema quickdraw in 12cm, 18cm or 25cm lengths
• Also available as a Spectre 2/Shadow 11mm dyneema quickdraw in 12cm or 18cm lengths

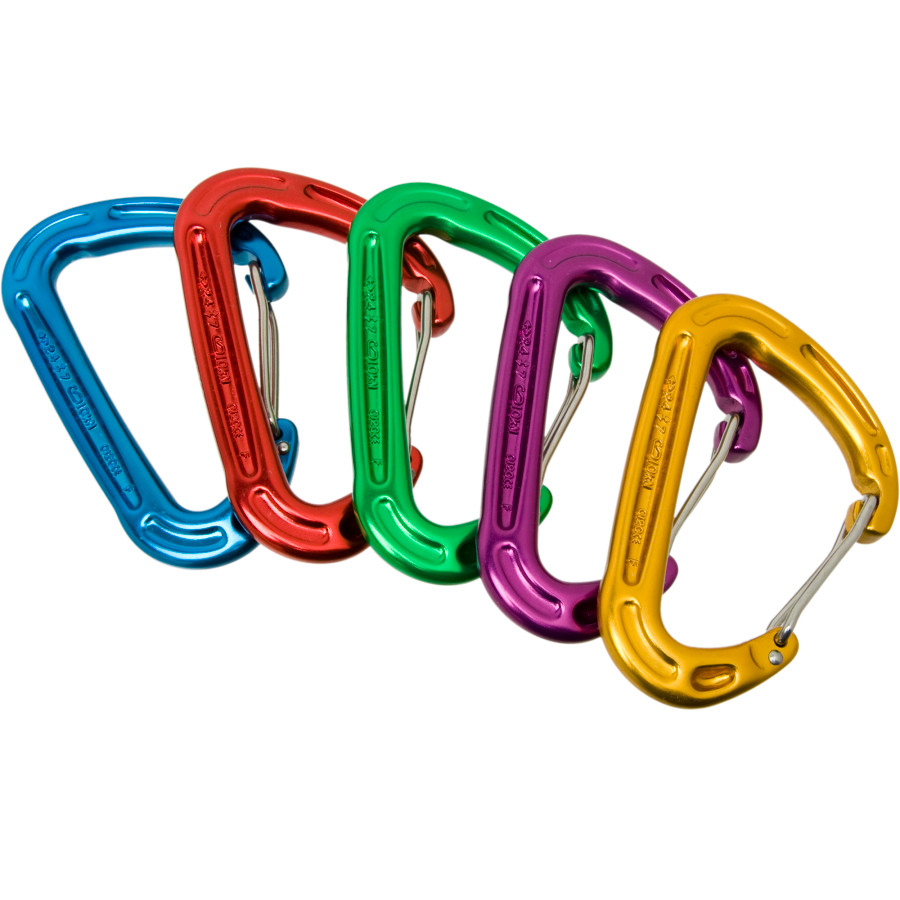

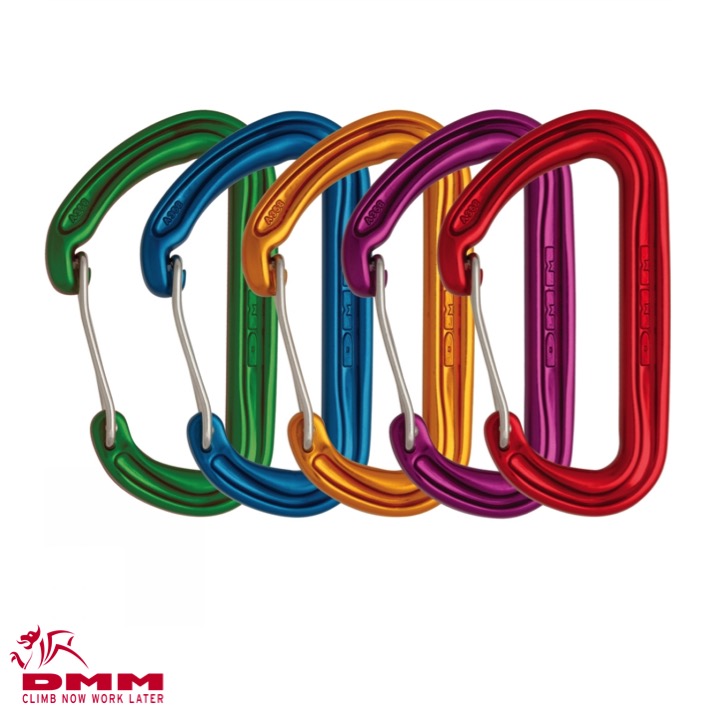

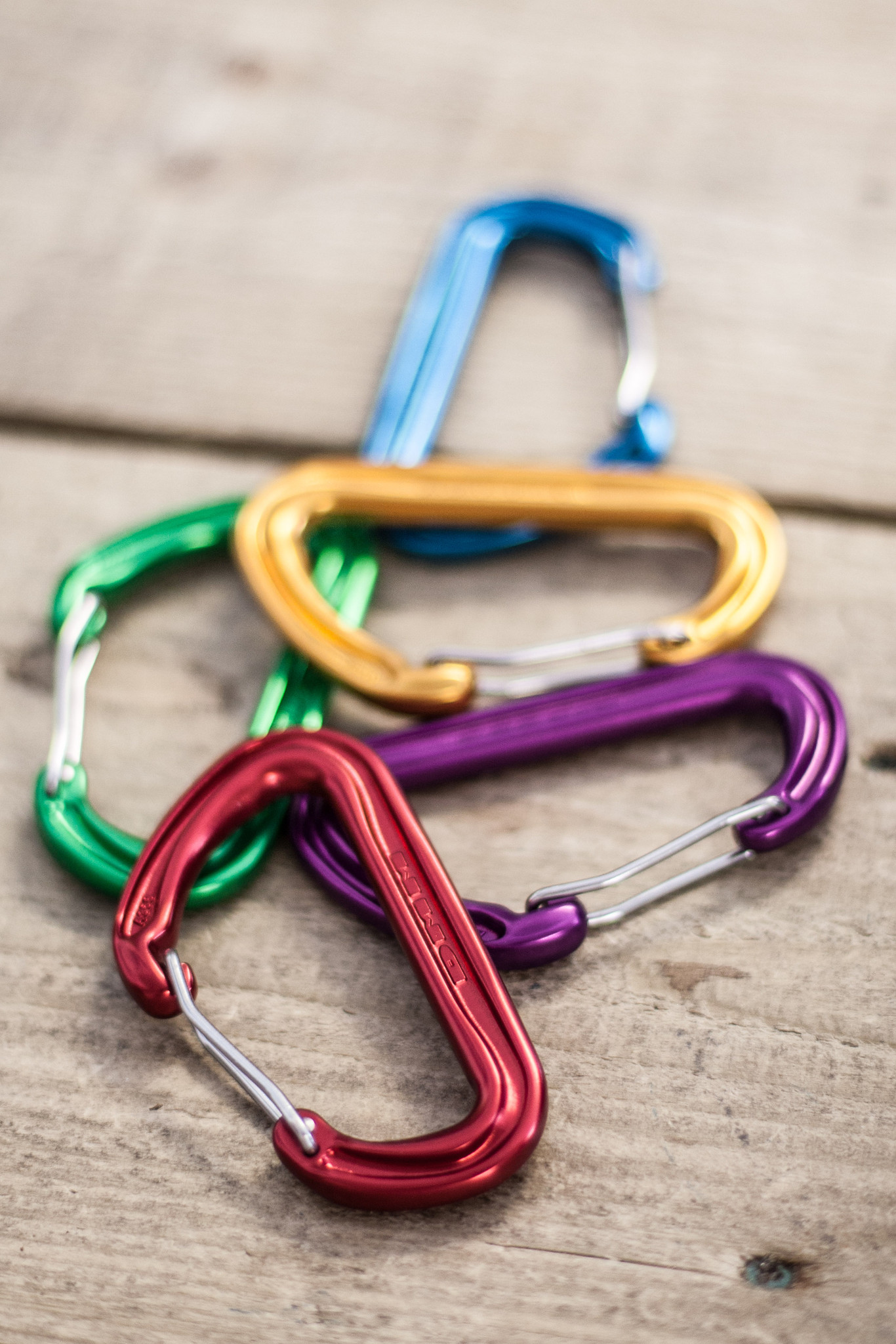

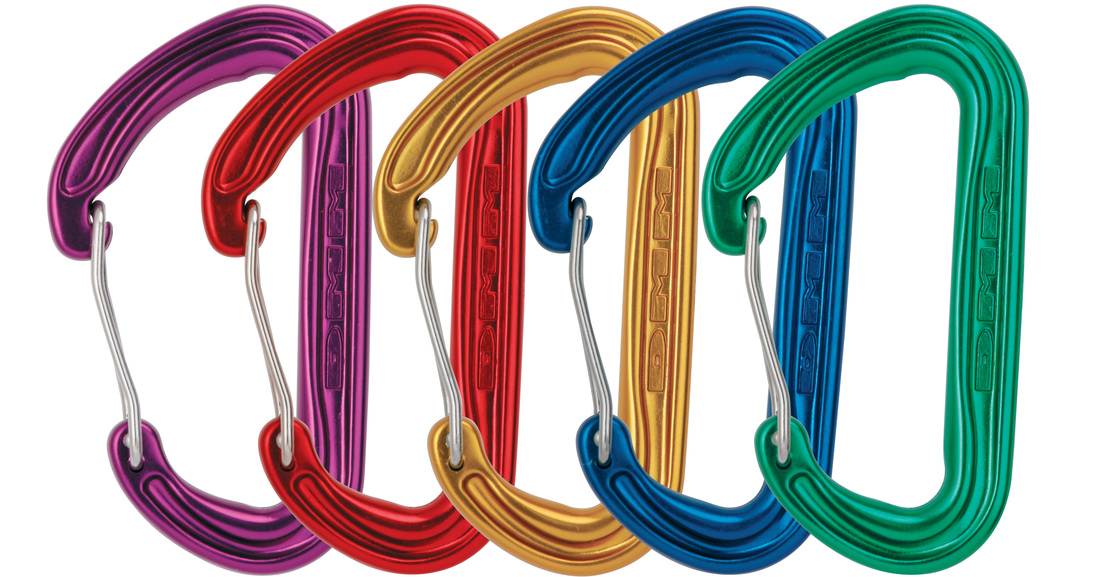

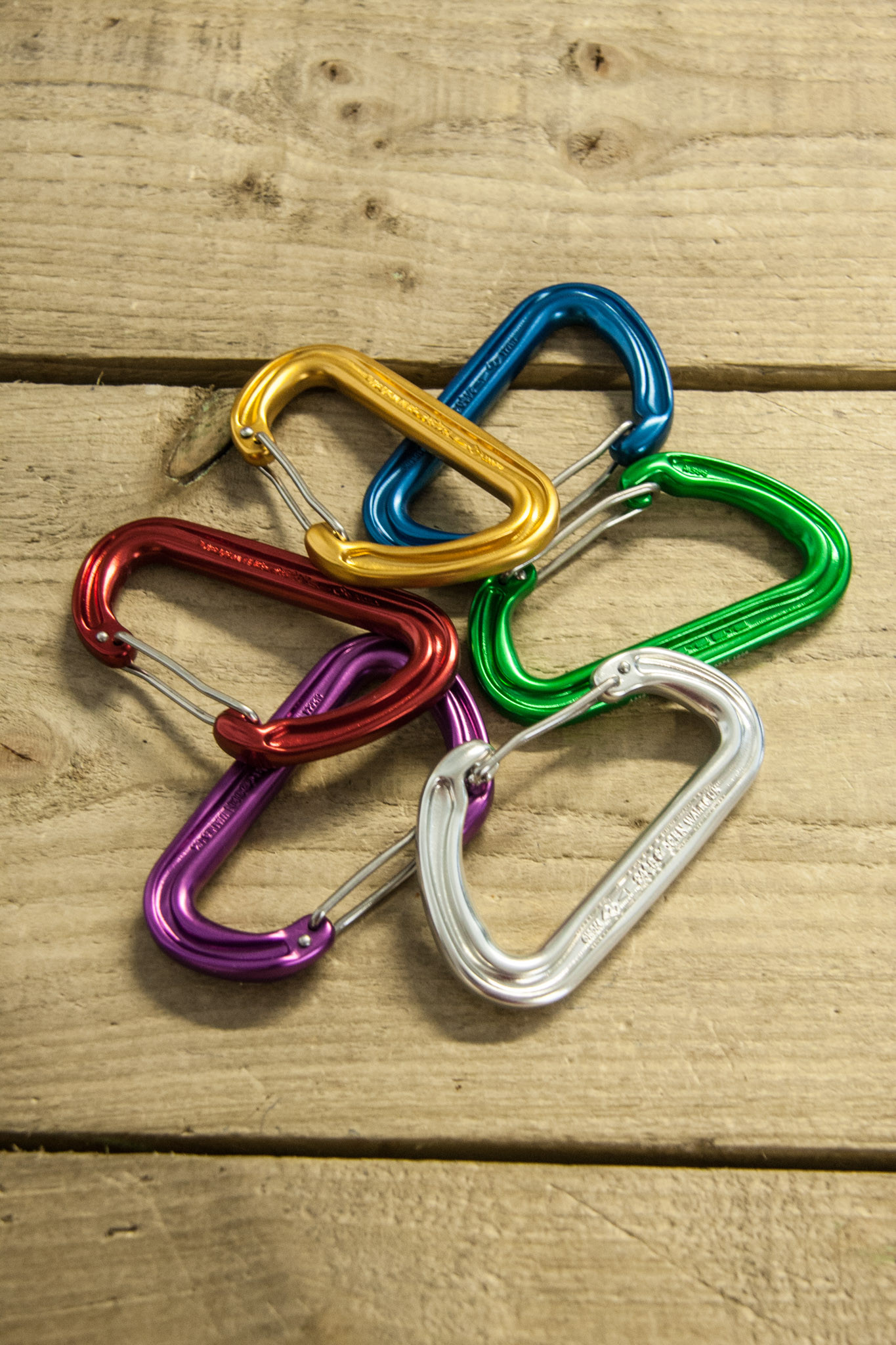

SPECTRE 2 – COLOR MULTI PACK

The Spectre 2 from DMM is the perfect option if you prefer the handling qualities of a larger biner. It’s certainly big enough to work well if you are wearing winter gloves. Lighter than and featuring a deeper “rope basket” than the original Spectre.

• Weight: 1.2 oz/ 33 g
• Carabiner Type: Non-locking Biner, Wire Gate Biner
• Carabiner Size: Standard
• Major Axis kN: 24 kN
• Minor Axis kN: 8 kN
• Open Strength: 9 kN
• Gate Opening: 25 mm
• Material: Aluminum
• Classic all round wire gate
• Lightweight I-Beam construction
• Safer, deeper rope basket
• Easy to handle back shape
• Generous 8.5 mm rope radius
• Modified nose to protect the gate

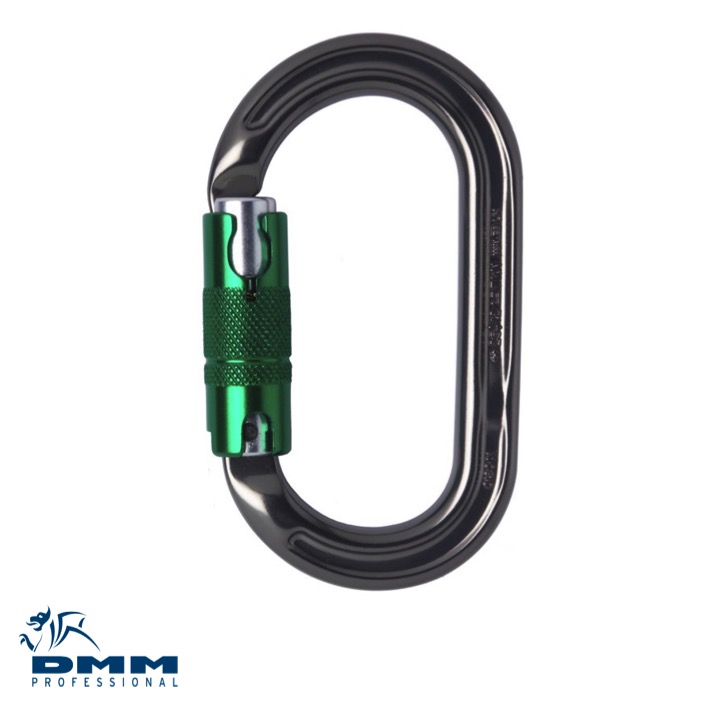

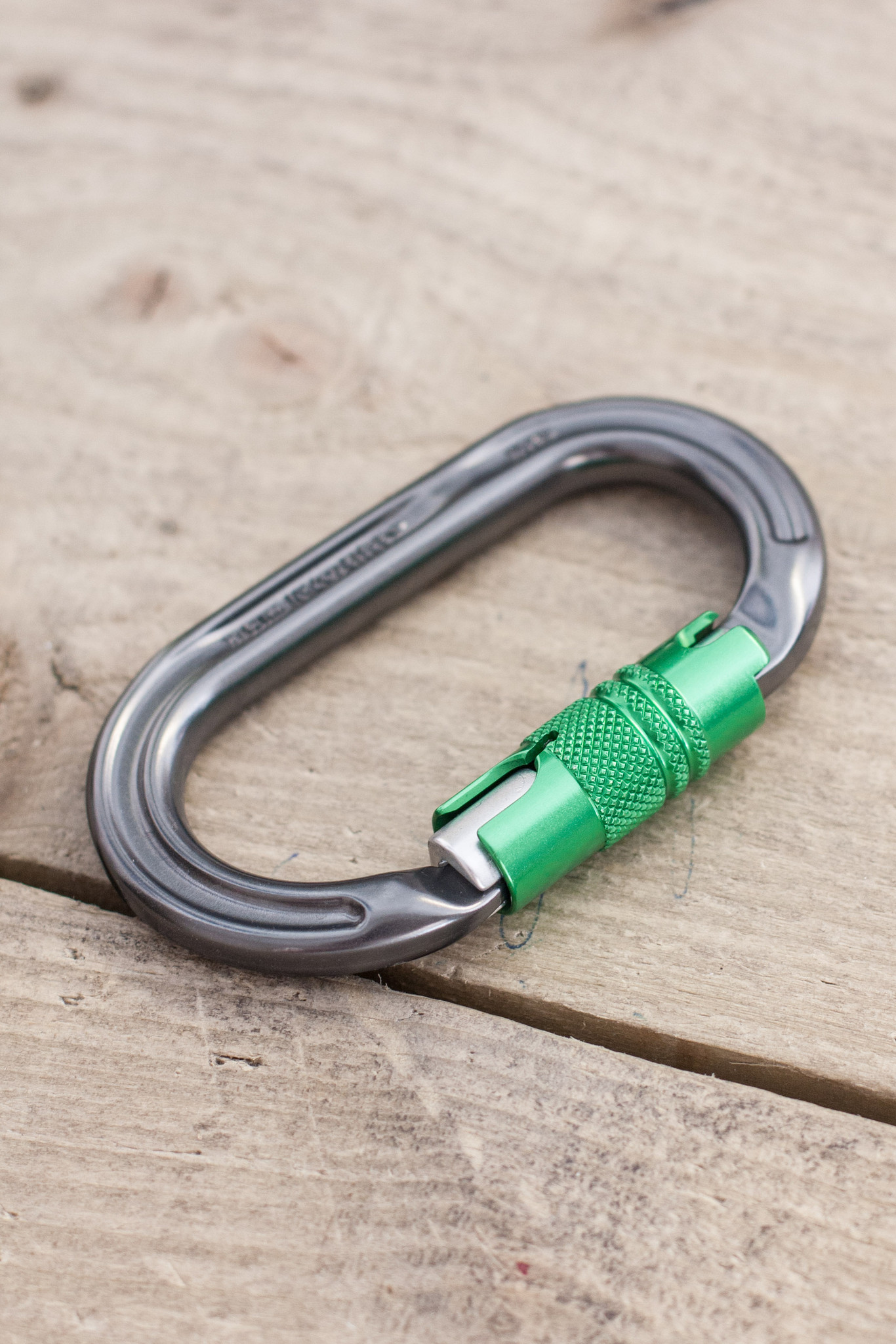

ULTRA O LOCKSAFE

The DMM Ultra O is an extremely symmetrical oval carabiner, ideal for use rigging pulleys and other uses where the carabiner needs to allow the attachment points to be centralised and hang straight. Some oval carabiner biners are not as symmetrical as others, making them less useful for their designed purpose. The DMM Ultra O is one of the most oval shaped biners available.

Features

• Gate Opening: 24mm
• Weight: 61g
• Major Axis Strength: 25kN
• Gate Open Strength: 7kN
• Minor Axis Strength: 12kN

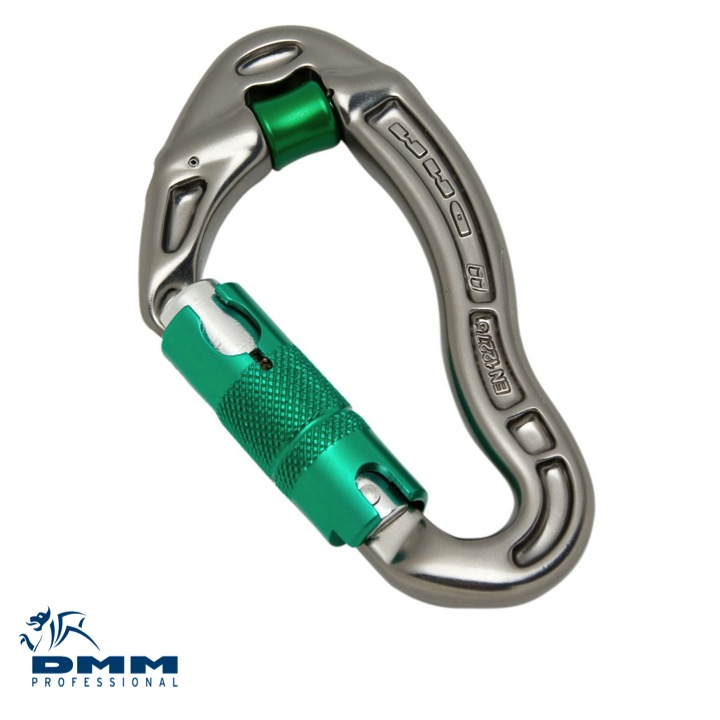

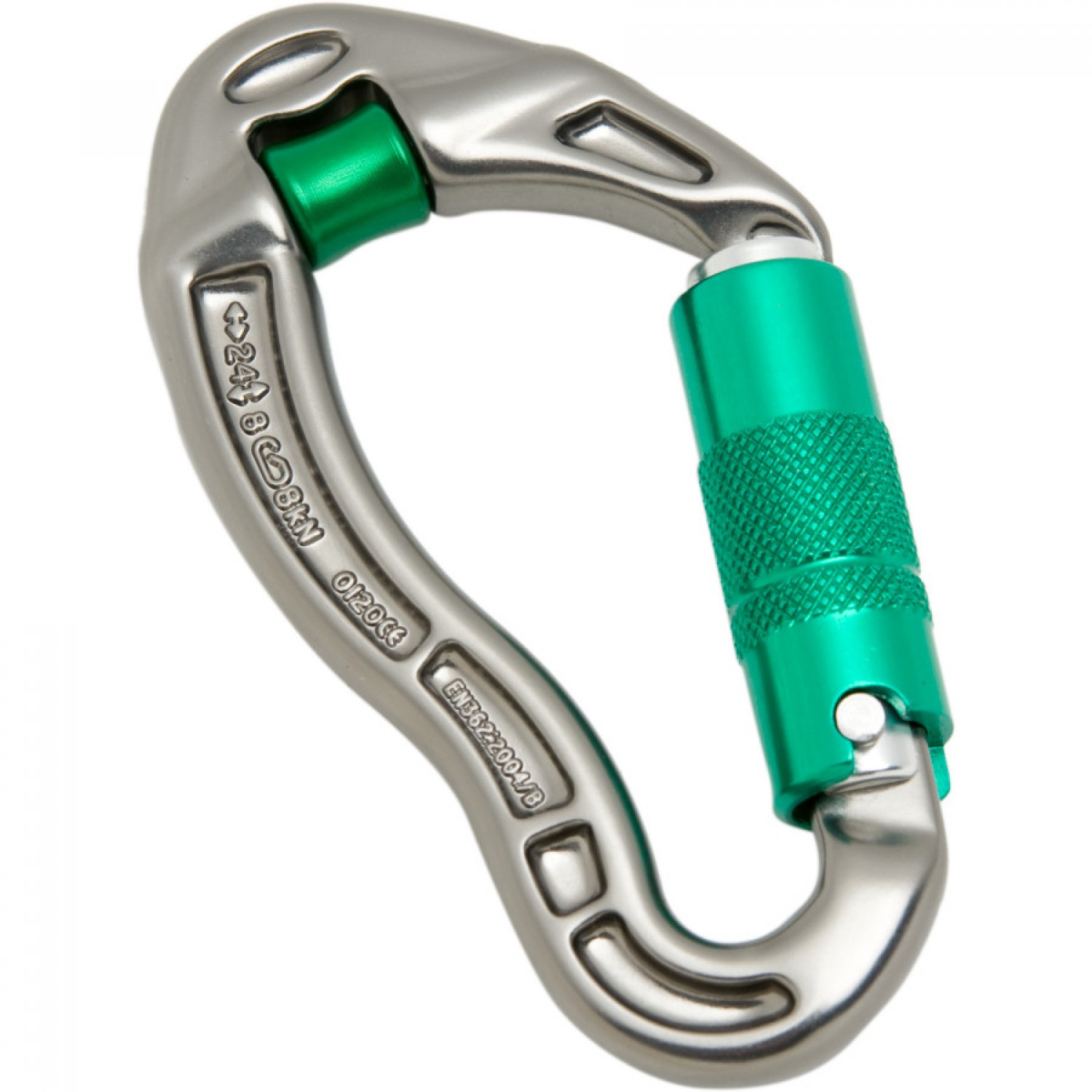

REVOLVER LOCKSAFE

The Revolver with a Locksafe gate forms a neat ‘semi-captive’ interface with many of our treecare components such as our Rigging Hubs and Anchor Rings. This limits the risk of the connector from flipping over or cross loading, making them indispensable in remote or fixed rescue systems.

The DMM Revolver is a unique alloy carabiner with a built in roller. It is a versatile piece of equipment useful for rigging and rescue especially where weight saving is desirable. This lightweight, high strength carabiner can be used for a variety of uses including clipping horizontal lines, hauling chain saws, deviating running ropes, and lightweight haul or rescue systems.

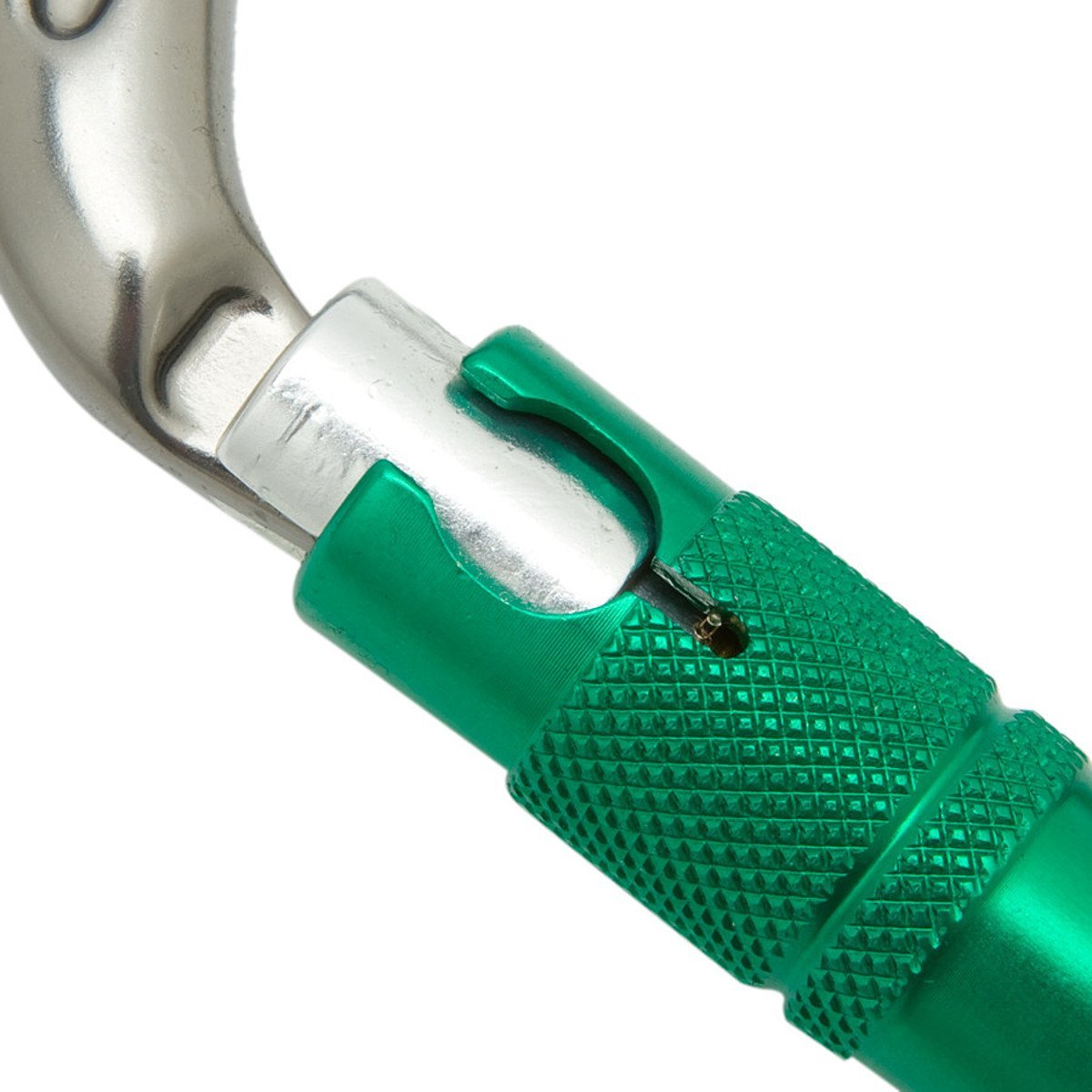

The classic triple-action, locking mechanism. The Locksafe is almost as simple to use as the Kwiklock, requiring just one extra push-up action of the barrel before the twist, but when locked gives even better protection from accidental opening. This is especially important in situations requiring complex, rope-running systems. A rope under tension may run transversely over other locking mechanisms exposing them to the risk of unlocking. The addition of the third required action dramatically reduces the likelihood of the same rope opening the Locksafe.Top Tip: Keep all Locksafes clean and properly maintained to increase longevity in use.

• Unique pulley wheel design locking biner
• Strong and lightweight I-Beam construction
• Shrouded nose to reduce snagging
• Available with Screwgate, Quicklock and Locksafe locking systems

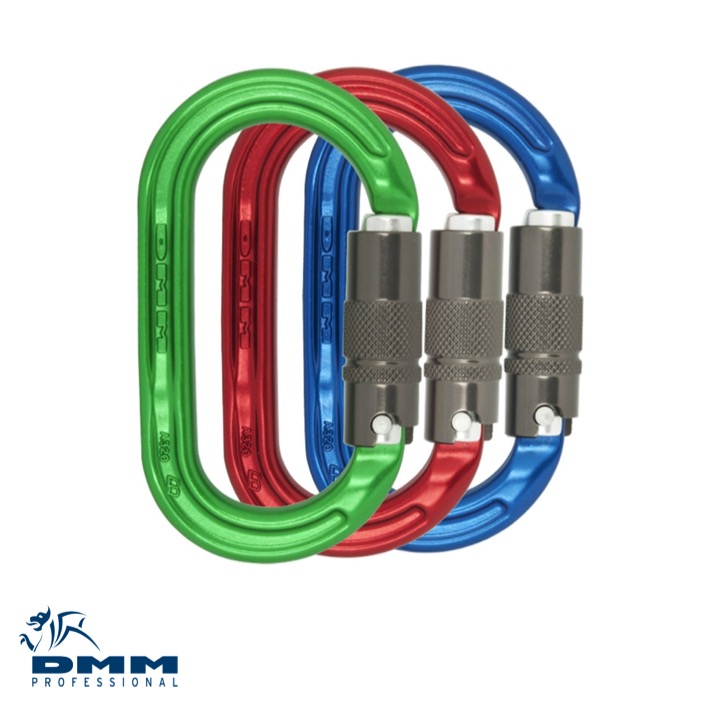

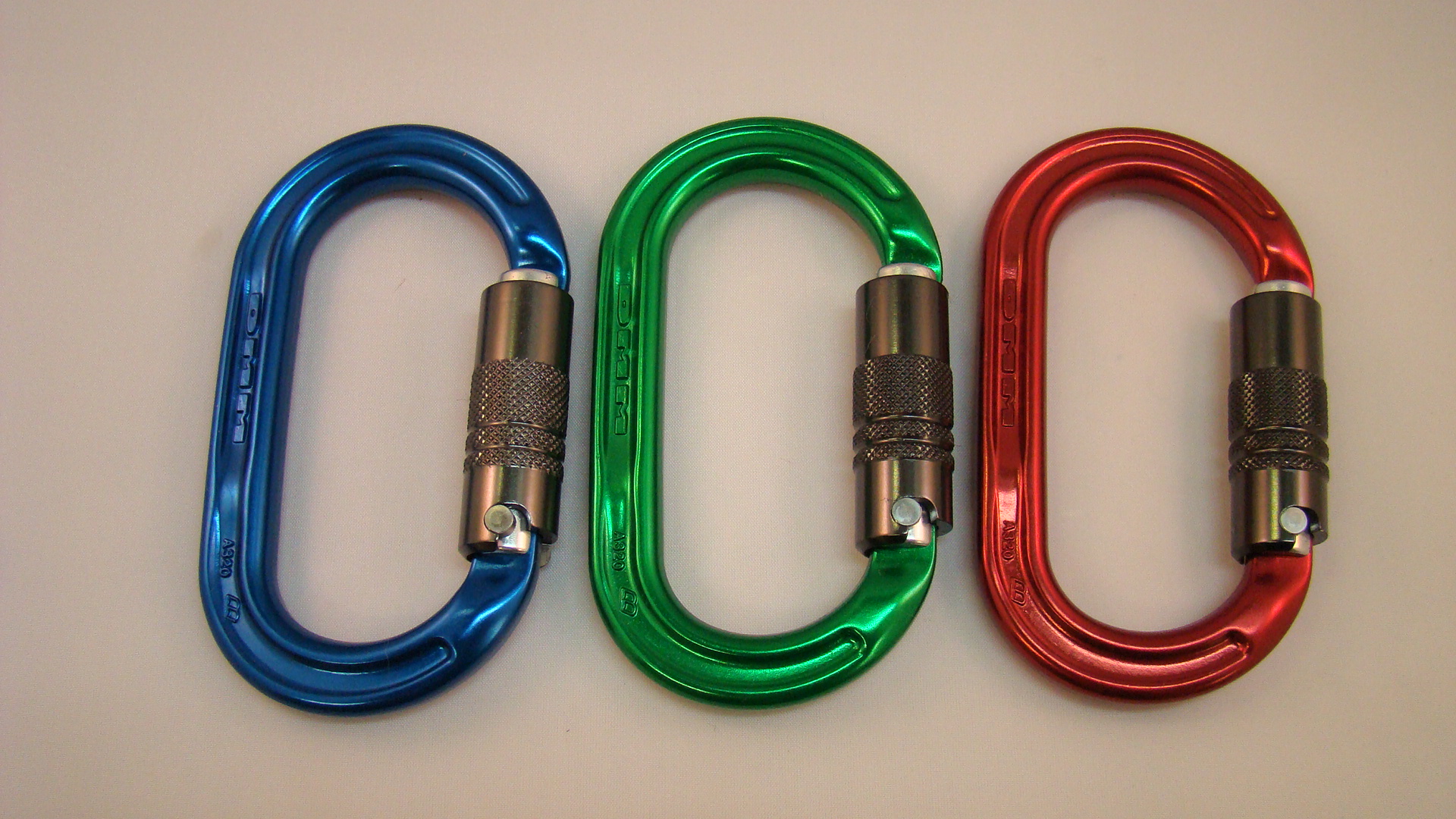

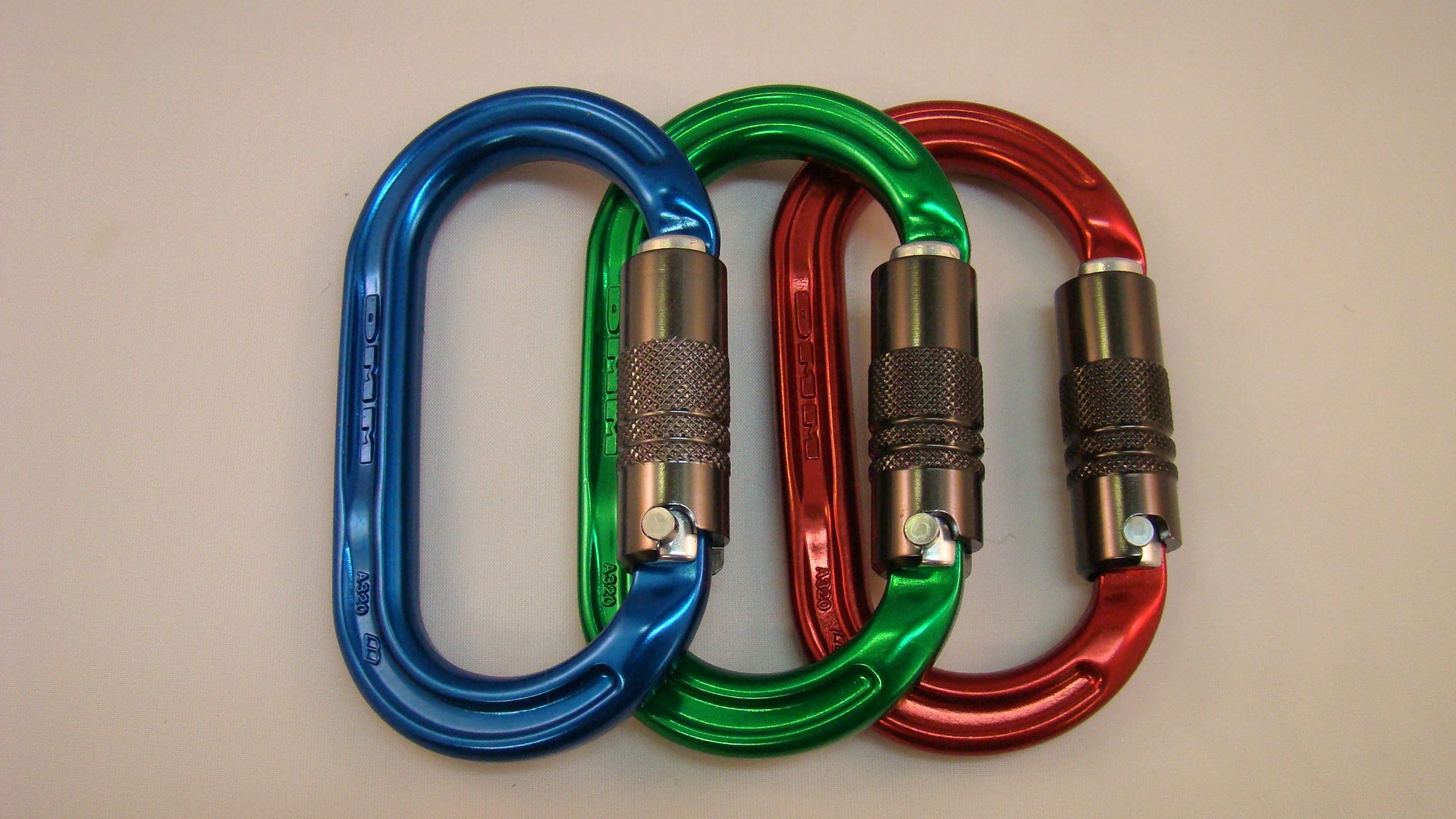

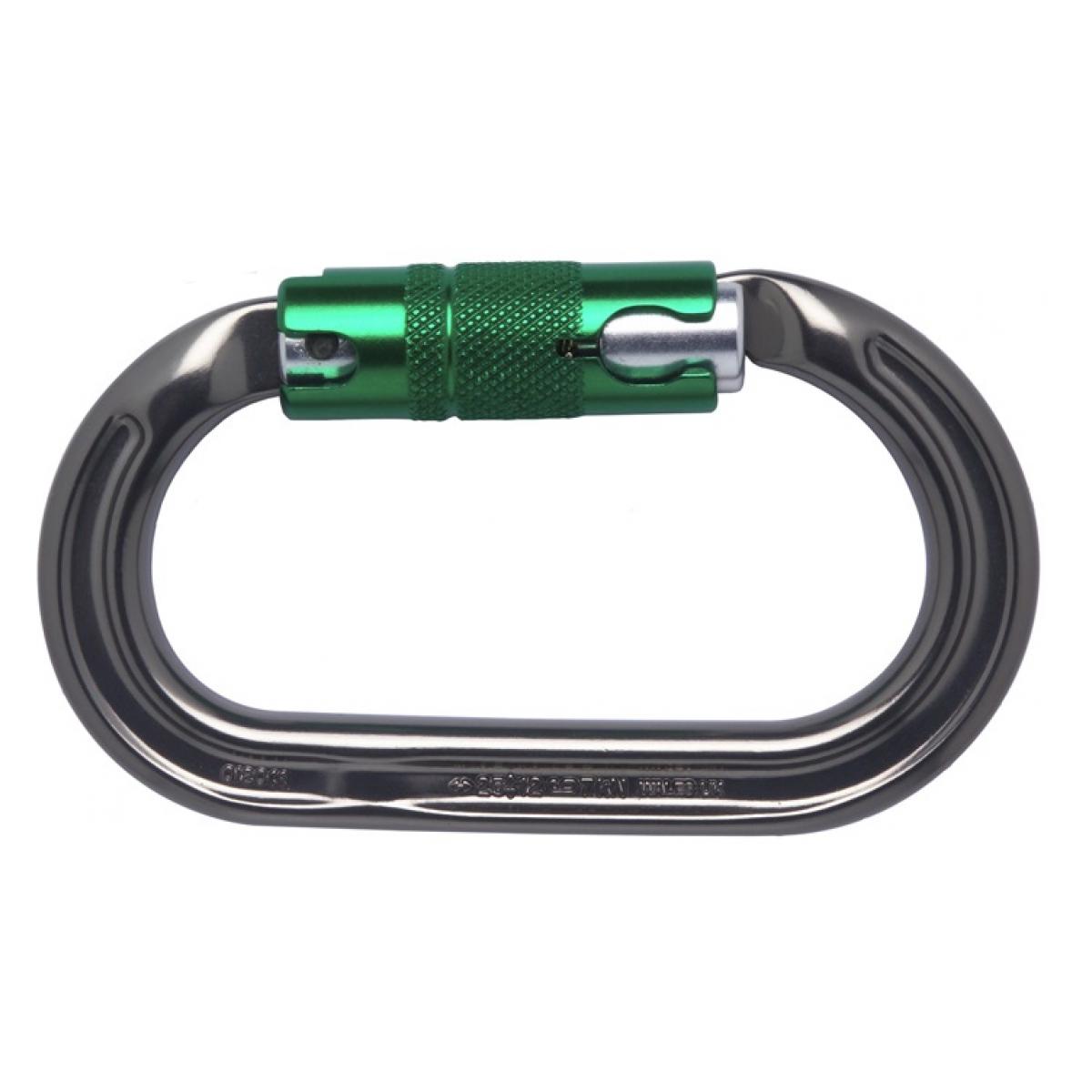

ULTRA O LOCKSAFE – COLOR PACK

The simplest and most convenient way of identifying components within any system – the DMM Ultra O Multipack includes all three carabiners for the one price. Ideal for the training market – now trainers can identify systems from a distance. And the multipack is an economical way to purchase Ultra O carabiners. The DMM Ultra O is designed to work perfectly with the DMM Hitch Climber. Hot forged in Wales with I-Beam panels resulting in a major axis strength of 25 kN and a minor axis strength of 12 kN. The Ultra O also makes a good belay carabiner with a really wide, 9.75 mm rope radius that is kind on your ropes. Plus it has a high cross loading strength. A convenient way to organise work teams and individuals.

Features

• Product Code: A327-P3
• Weight: 71 g (1 piece)
• Strength: 25 kN
• Length: 109 mm
• Width: 66 mm
• Gate Opening: 18 mm
• Bar Ø: I-Beam
• Oval shape ensures central positioning of all devices
• I-Beam bar section for increased strength-to-weight ratio
• Keylock nose fro snag-free connection
• Hot forged and fully heat treated aluminum for lightness and maximum strength
• Anodized to BS12373-2001 Class I0EI sealed for corrosion protection
• Recommended for use with pulleys and as a general connector
• Individually marked for traceability
• Made in Wales

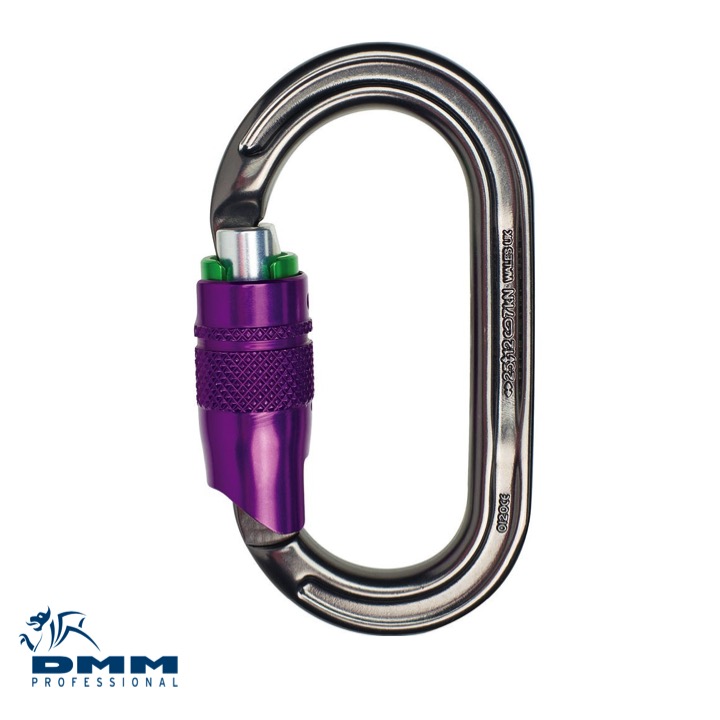

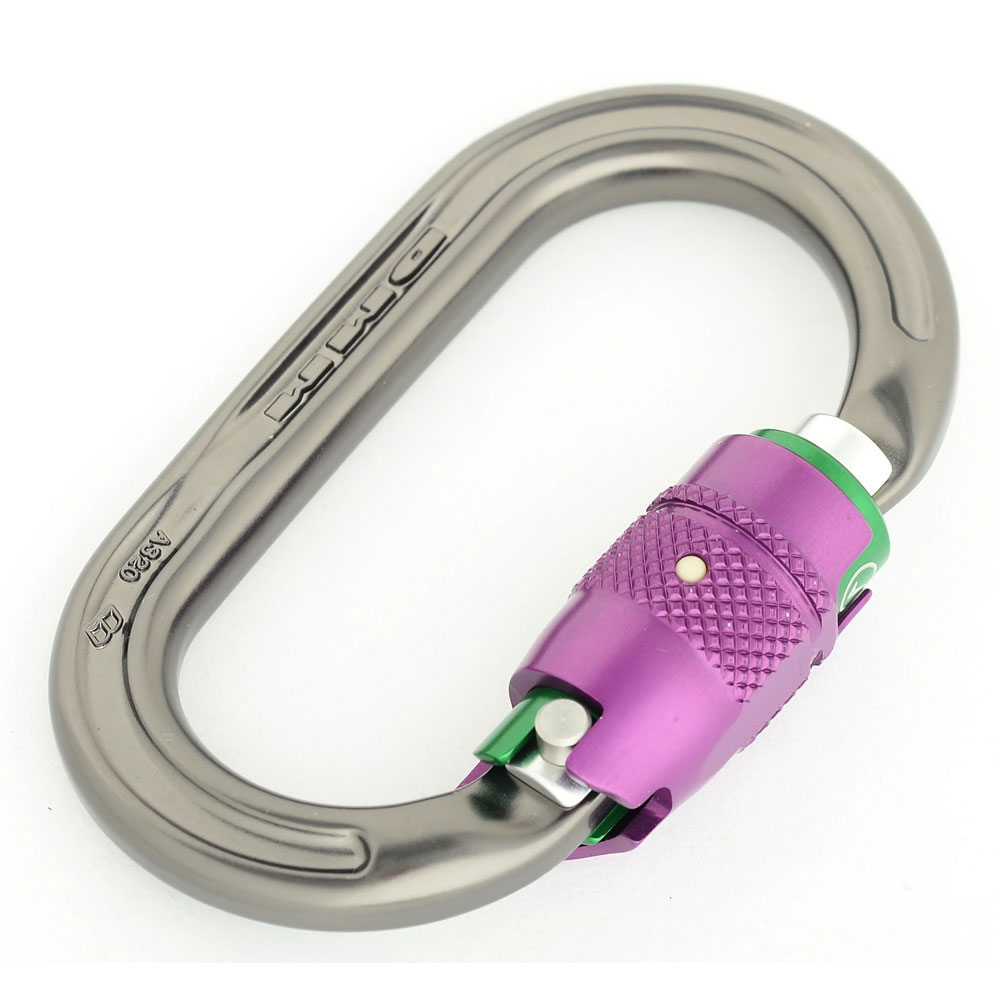

ULTRA O DUROLOCK

The ultra light, clean nose DMM Ultra O oval carabiners are the mainstay of our carabiner market, and for good reason. Not only do they give high strength to weight ratios and feel great in the hand, they also help to keep components of a system aligned. The deep symmetrical basket allows pulleys, webbing, ropes and even other carabiners naturally sit centrally in the oval basket but still allow easy stacking of components on either side. Any weight transfer then happens without any unnerving jumps associated with offset and D shaped carabiners.

The Durolock (Dual Rotor Lock) was designed to minimise the chances of accidental gate opening, and maximise levels of security. Its complex, yet easy to manipulate gate requires four distinct actions to open, and once released auto locks back to safe. It is perfect for complex/busy rigging applications.

Features

• Approved to EN362:2004/B
• Also available pre-drilled with a captive bar option conforming to EN362:2004/T
• Oval shape allows central positioning of devices
• I-Beam section for increased strength to weight ratio
• Keylock clean nose for snag free connection
• Hot forged and fully heat treated aluminium for lightness and maximum strength
• Anodised to BS EN 7599:2010 AA10 Sealed for corrosion protection
• Recommended for use with pulleys and as a general connector

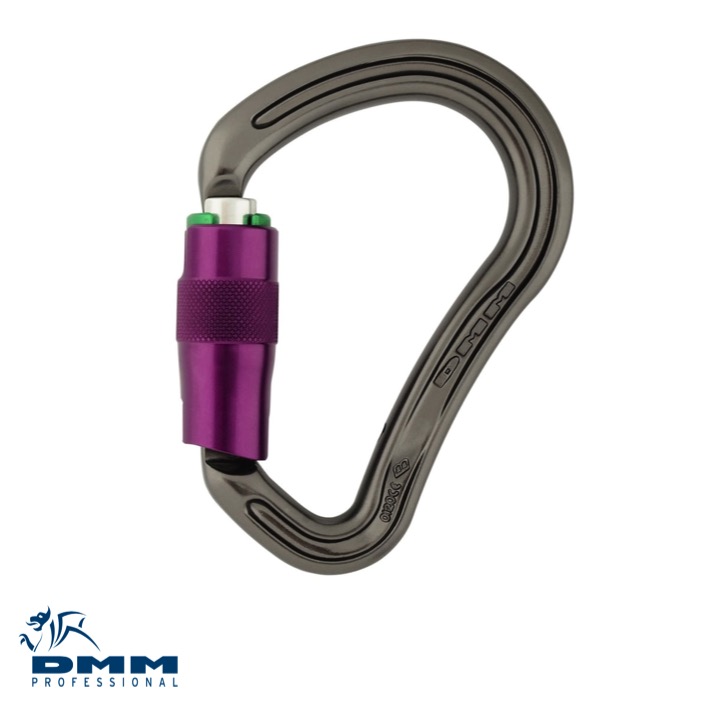

BOA 30kN DUROLOCK

Oversized, yet still ergonomic and user-friendly, the Boa is ideally suited to applications where large connector volume and gate clearance are required. The large HMS shape allows for easy rotation of Italian hitches in tension rigging applications and the smooth curved internal form makes rotating the carabiner through attachment eyes simple.

The Durolock (Dual Rotor Lock) was designed to minimise the chances of accidental gate opening, and maximise levels of security. Its complex, yet easy to manipulate gate requires four distinct actions to open, and once released auto locks back to safe. It is perfect for complex/busy rigging applications.

The Boa Durolock from DMM was designed to reduce the possibility of accidental gate opening. The auto-locking gate requires four separate movements to open. This gate sequence is easily memorized and requires no extra thought for the climber. The Durolock gate is perfect for life-support or loads that require extra security.

Features

• Anti roll out Durolock (Patented) locking mechanism gives extra security when used in close proximity with moving ropes
• Approved to EN362:2004/B
• 30kN Breaking load
• Large HMS shape provides increased internal volume and gate clearance
• I-Beam section for increased strength to weight ratio
• Keylock clean nose for snag free connection
• Hot forged and fully heat treated aluminium for lightness and maximum strength
• Anodised to BS EN 7599:2010 AA10
• Sealed for corrosion protection
• Manufactured:  Wales

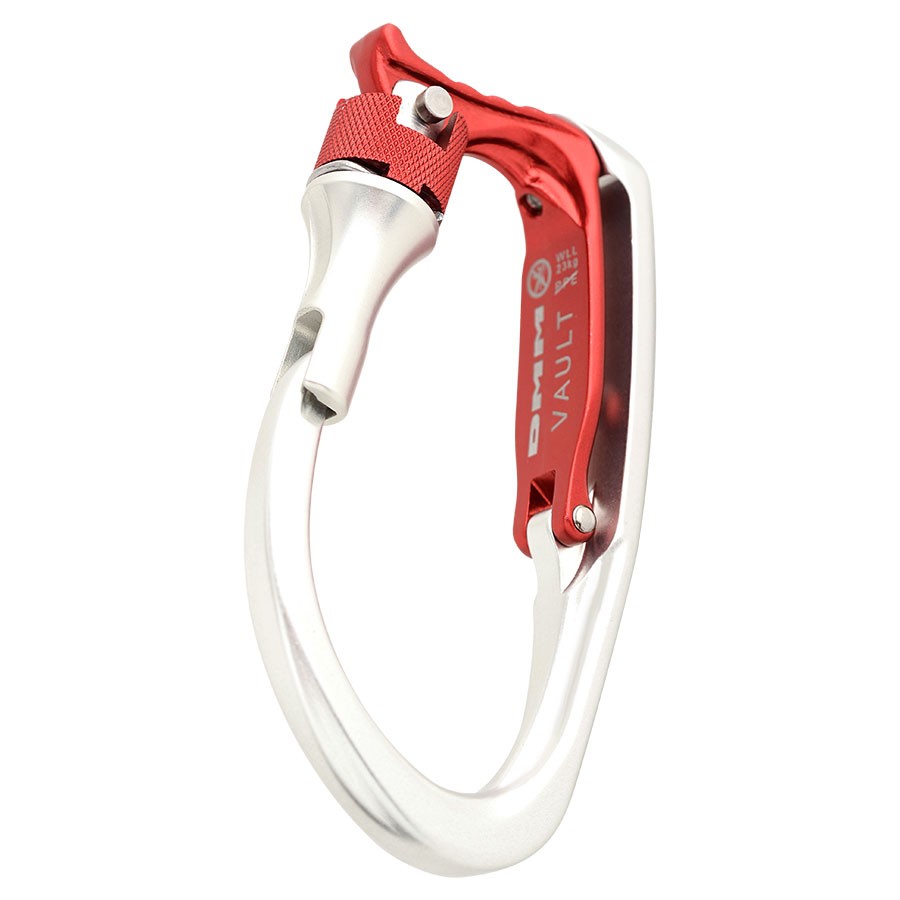

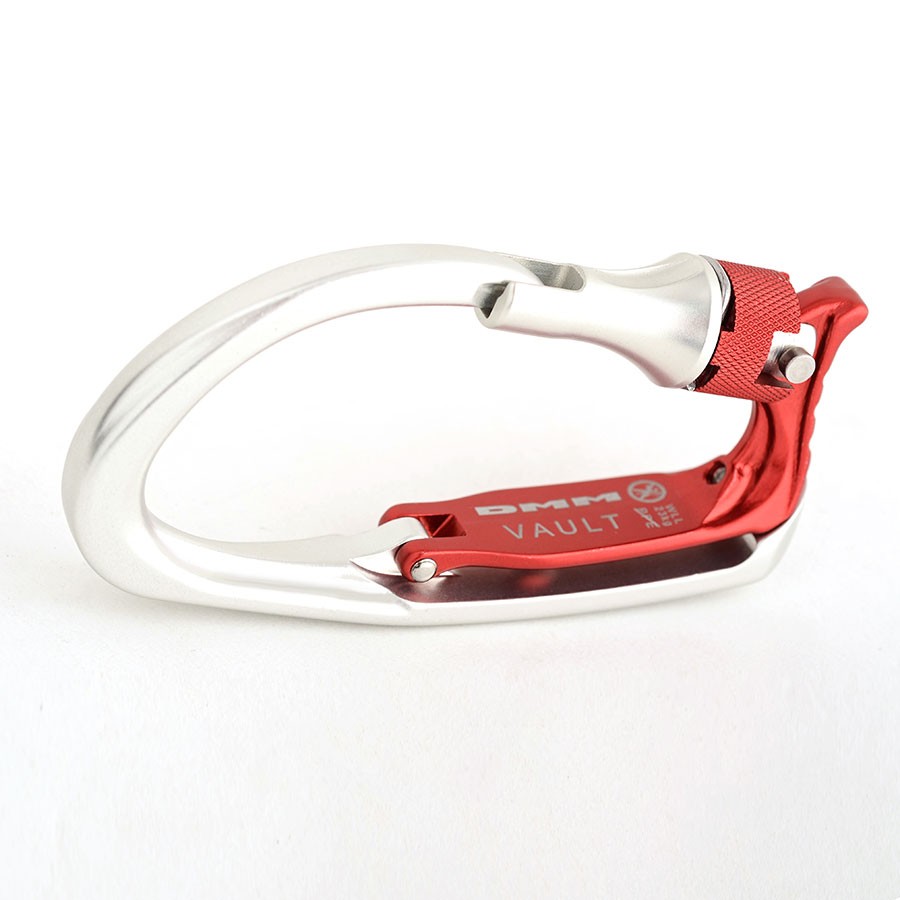

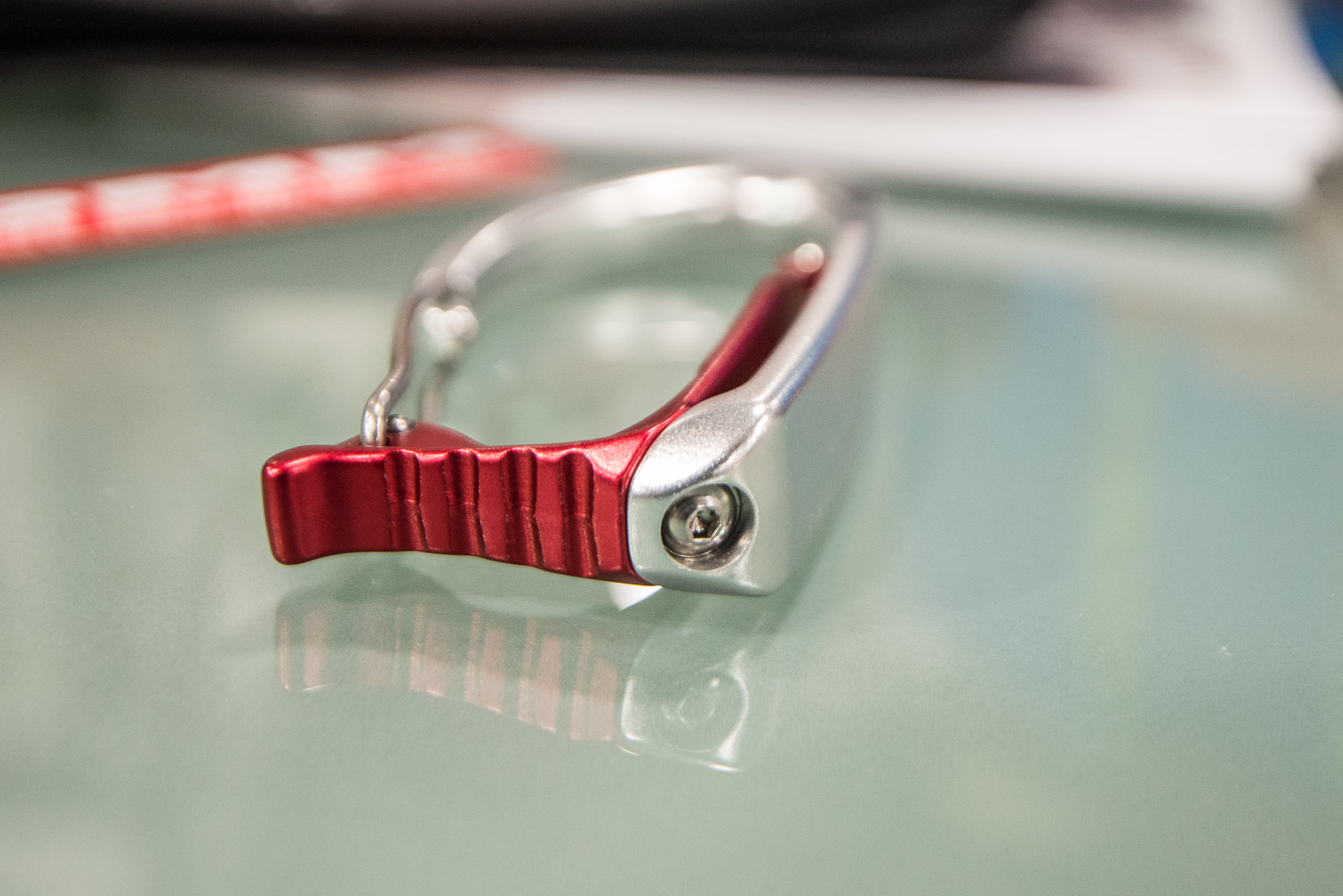

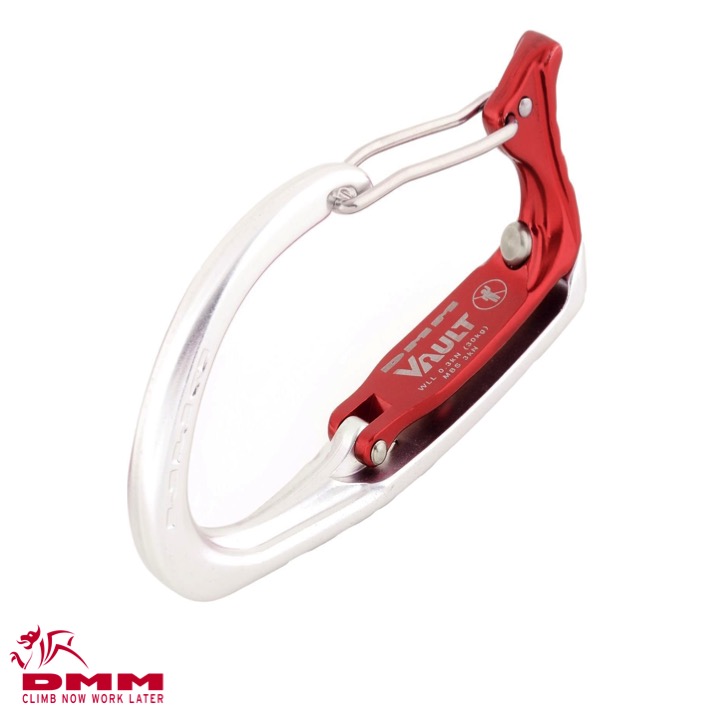

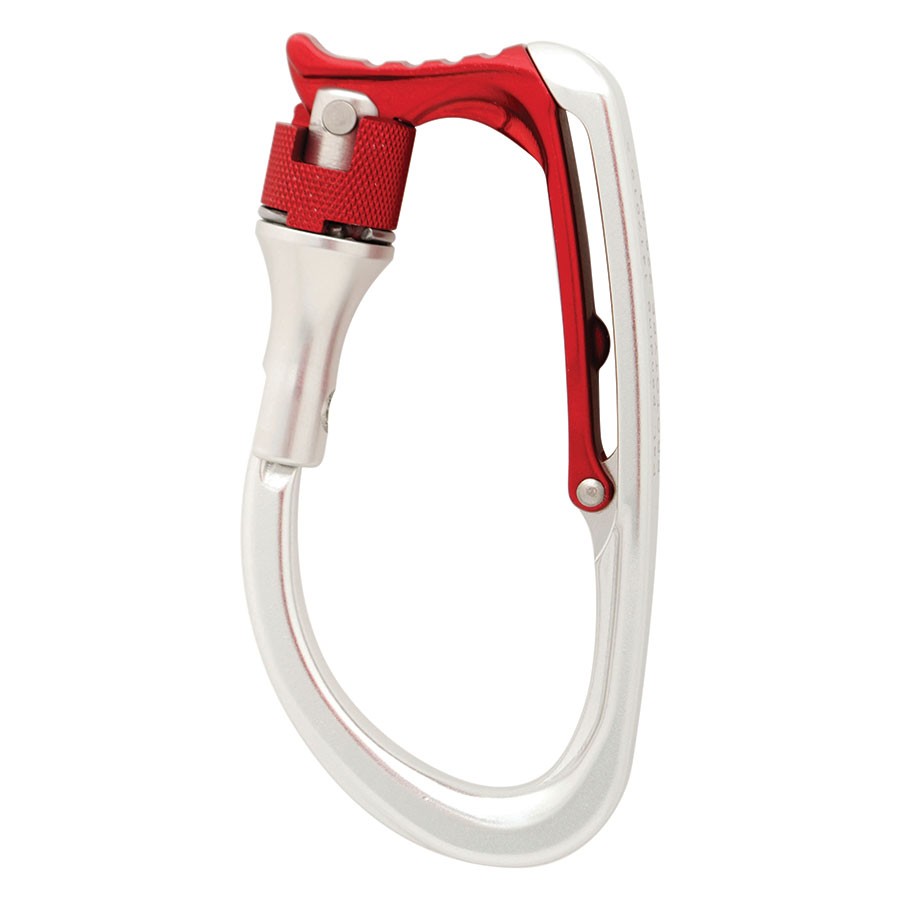

VAULT LOCKGATE

Strength, security and ease of use are the hallmarks of the Vault. The two-part construction allows customised user installation in a variety of ways, from harnesses, to kit bags, to vehicles and many other possibilities.

Once secured in place with the Allen bolt, the Vault is readily accessable for all of your gear storage, organisation and transport needs.

The locking option provides even greater security for your kit. The unique gate design allows you
to select between Open and Manually Locked, providing adaptable handling for a range of situations.

Features

• Product Code: A552
• Safe, strong and secure
• Low profile nose minimises hook-ups
• User installable
• Available in Wiregate and Locking Gate
• Low profile locking mechanism does not affect clipping
• Manual Handling: 23kg
• Total Max Load TBC
• Weight: 61g
• Gate opening: 23mm
• Max webbing size: 45 x 3mm  2.5mm
• Safe, strong and secure racking for ice screws and tools
• Low profile nose minimises hook-ups
• Compatible with most climbing harnesses featuring ice clipper slots
• Max webbing size: 45 x 3mm
• WLL 0.3kN – Not PPE
• User installable – flat bladed screwdriver required

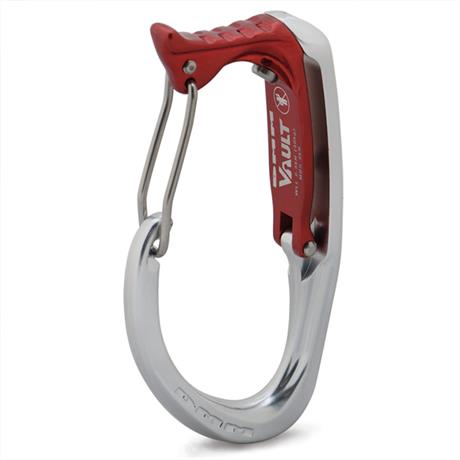

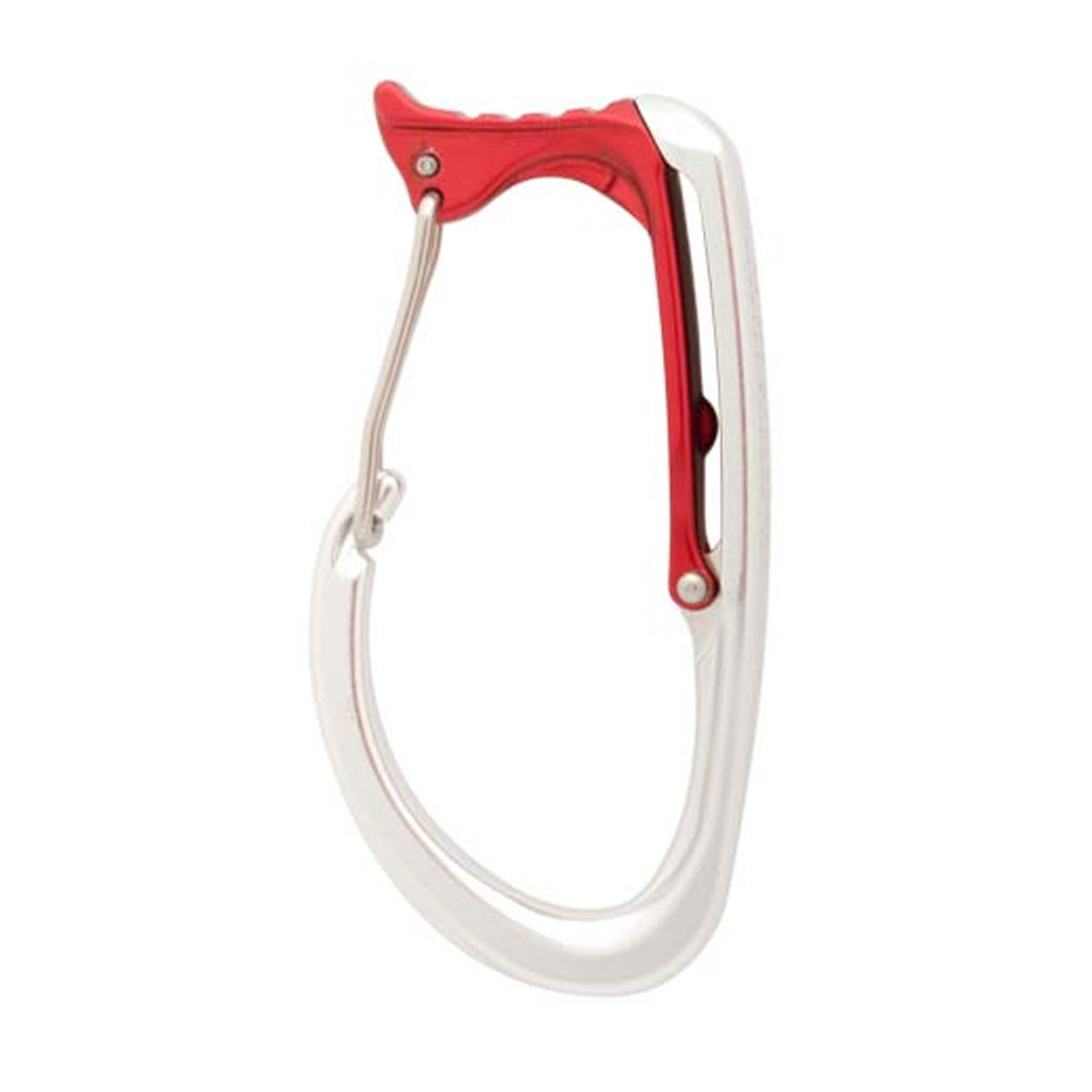

VAULT WIREGATE

The DMM Vault Wiregate is a harness mounted tool carrier that is safe, strong, and secure for racking tools or lanyards. The wiregate provides fast clipping and unclipping of all of your tools, and the snag free, low-profile nose minimizes hook-ups. Just use a flathead screwdriver to quickly attach it to your harness or saddle.

Applying our metalworking experience to a product traditionally made of plastic has enabled us to maximise torsional rigidity and security, creating a racking carabiner that keeps your ice screws safely in place and easily accessible.

Features

• Safe, strong and secure racking for ice screws and tools
• Low profile nose minimises hook-ups
• Compatible with most climbing harnesses featuring ice clipper slots
• Max webbing size: 45 x 3mm
• WLL 0.3kN – Not PPE
• User installable – flat bladed screwdriver required

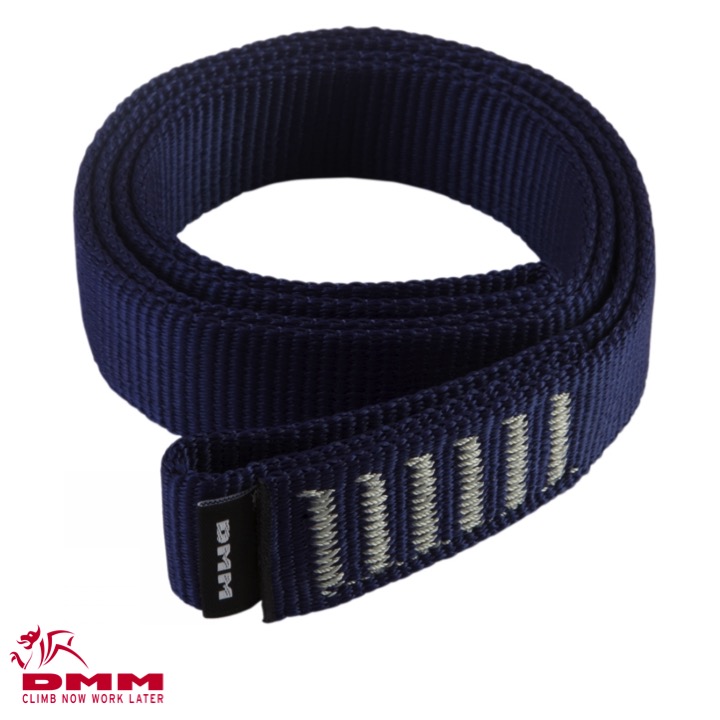

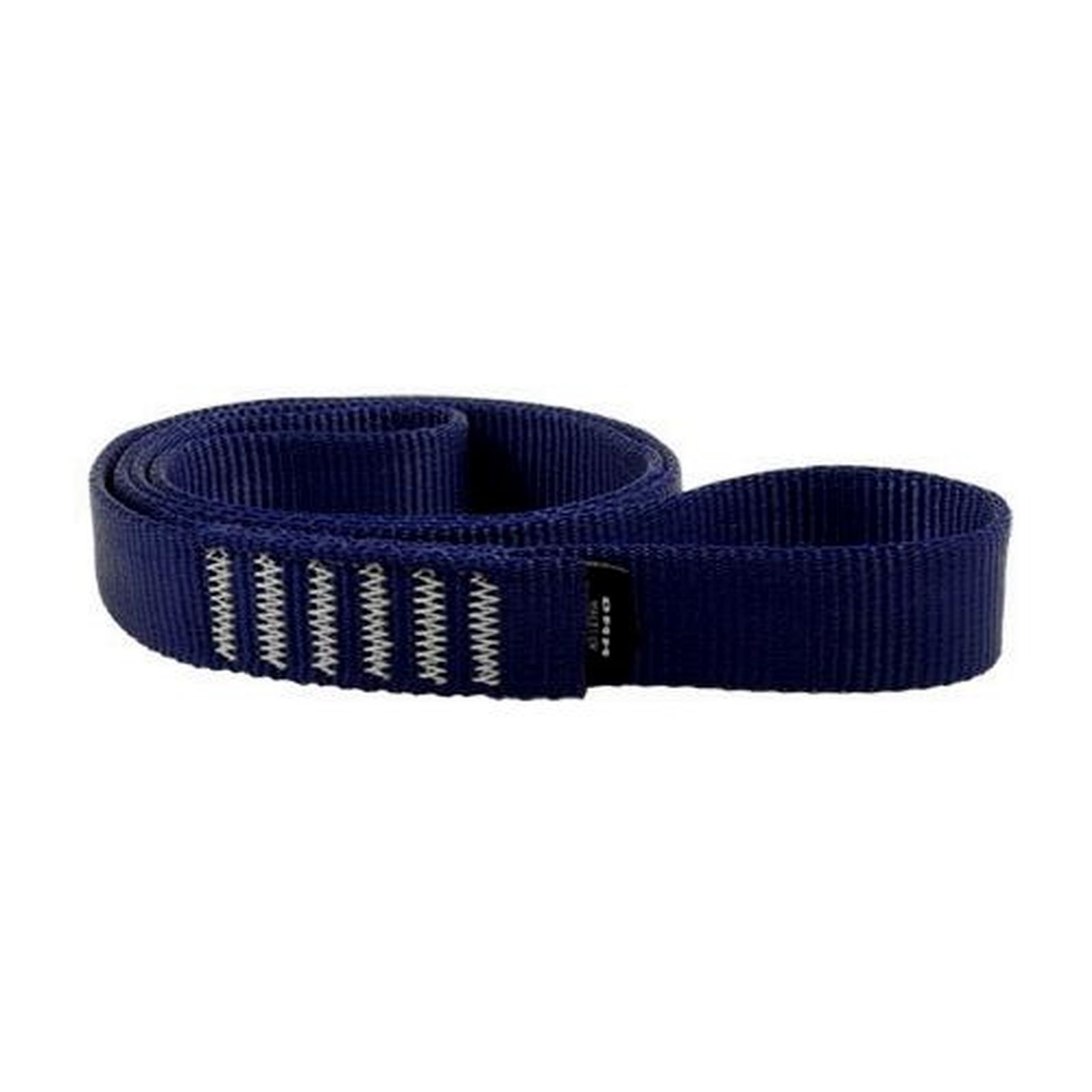

NYLON SLING

This is the strongest tape in our range. It might not have some of the weight advantages of the skinnier Dyneema slings, but if you are looking for a sturdy, hard wearing sling, this is it.

The Nylon 26mm is popular with outdoor centres and groups, but anybody who does a lot of rigging will appreciate its strength and durability.

Features

• 26mm Nylon tape
• Strongest in the range
• Budget price
• Suitable for centre use
• Available as 60cm, 120cm and 240cm open slings
• Available in blue

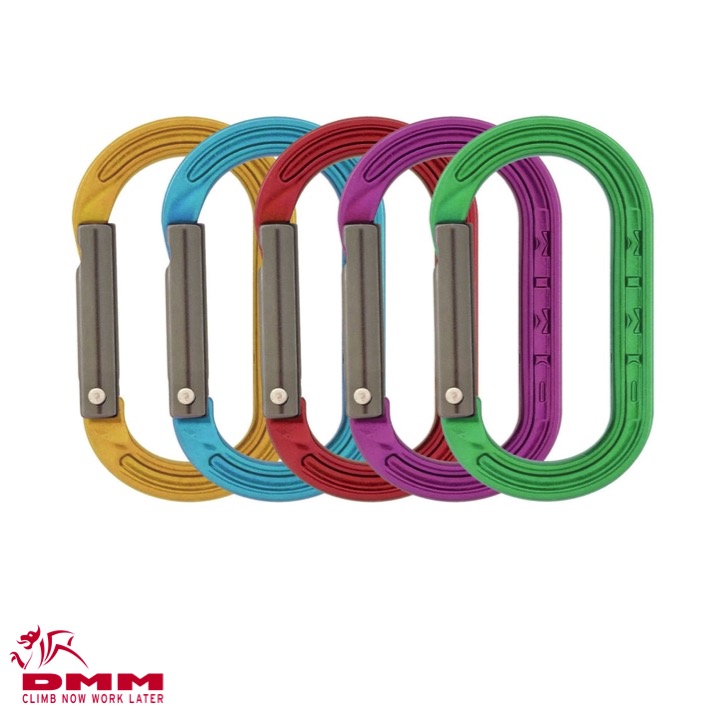

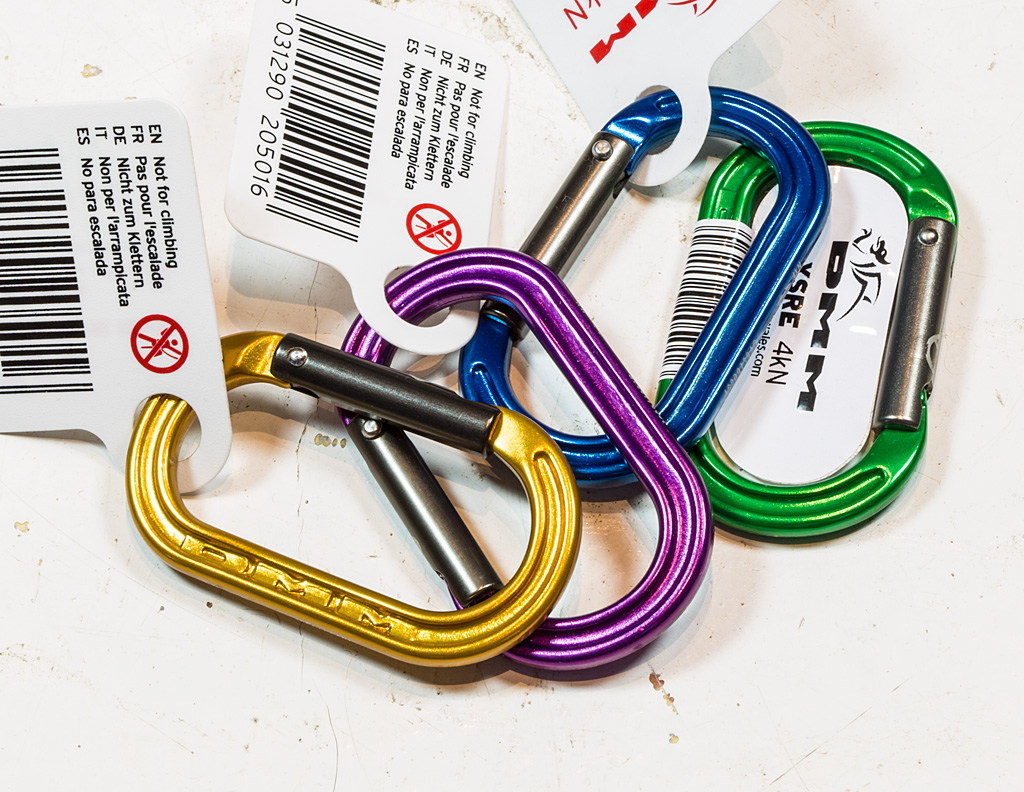

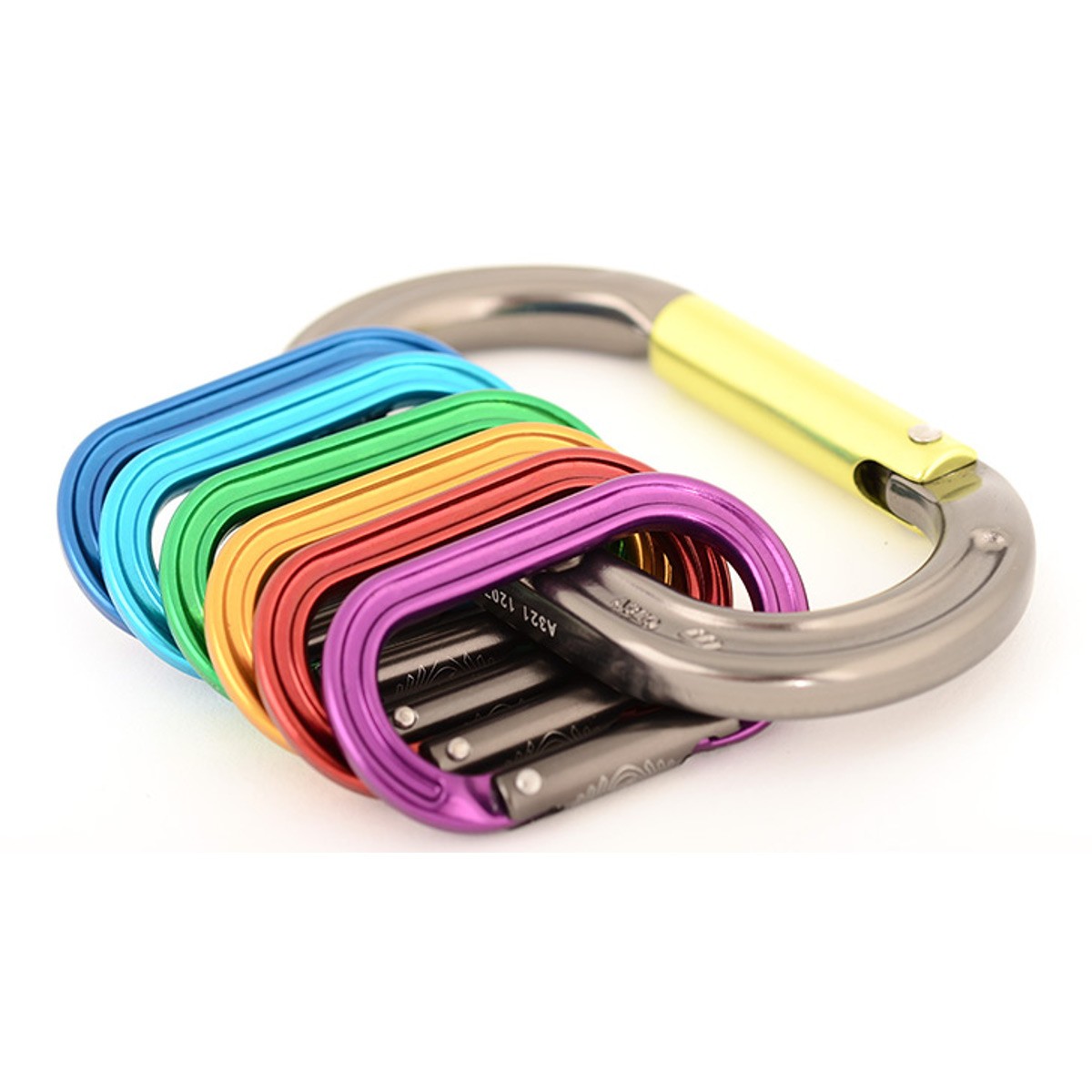

XSRE MINI CARABINER

XSRE carabiner is set for stardom. Small but mighty, easy on the eye and full of attitude this small racking element is the full package.

Hot forged I-Beam body provides the backbone of this super strong featherweight. The keylock nose aids rope piercing and reduces the chance of snagging.

This is the most useful high performance accessory carabiner on the market with hundreds of potential applications.

• 14 kN
• Compact size
• Keylock nose
• Plain gate
• Oval shape
• Low weight – weighing 8.1g
• Dimensions – 57mm x 33mm

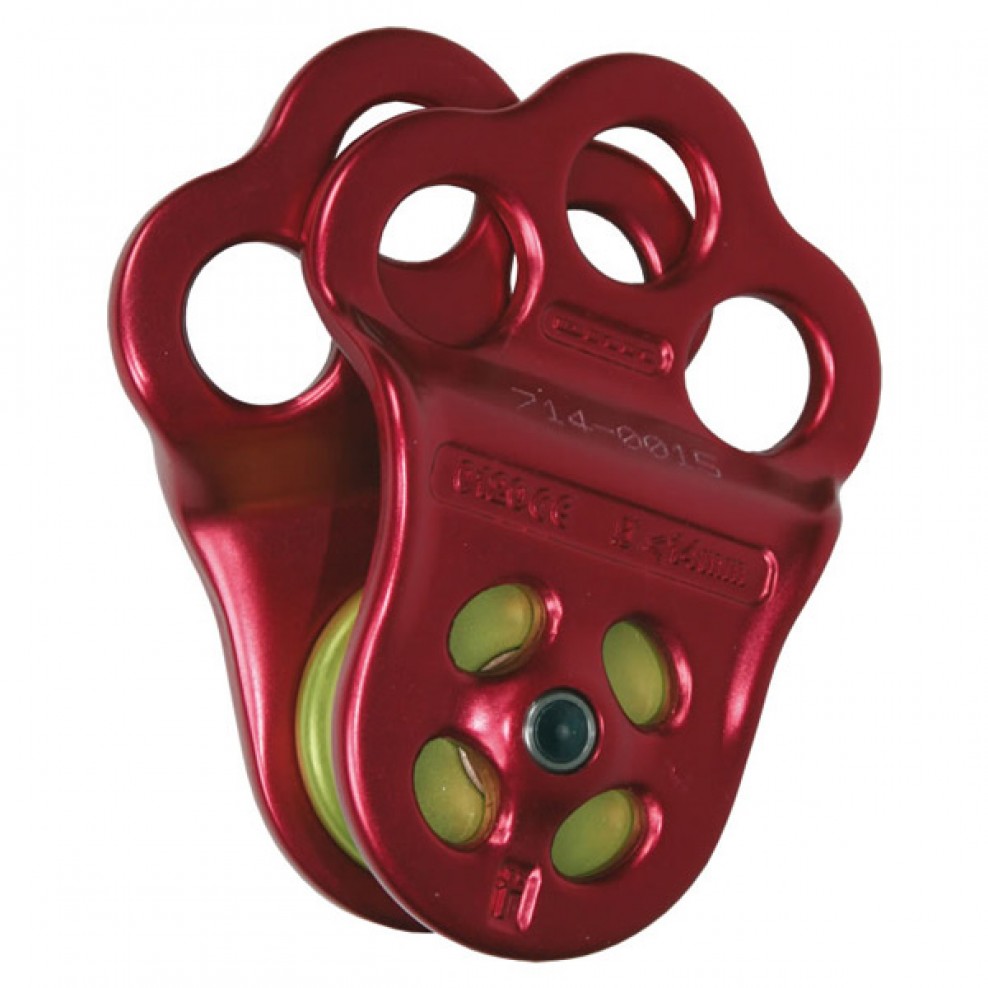

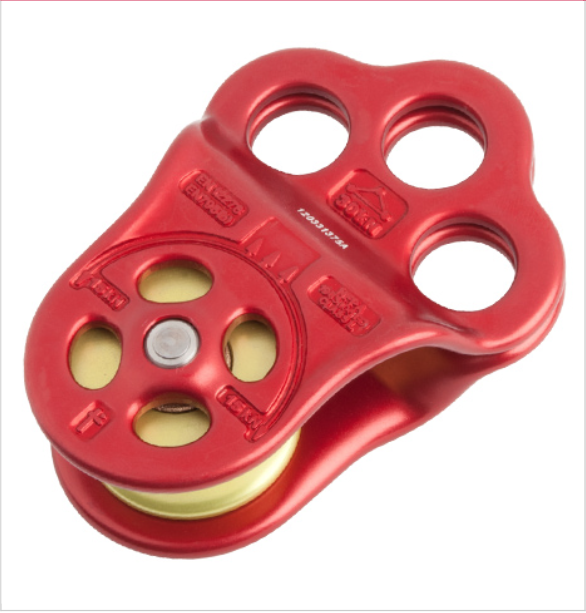

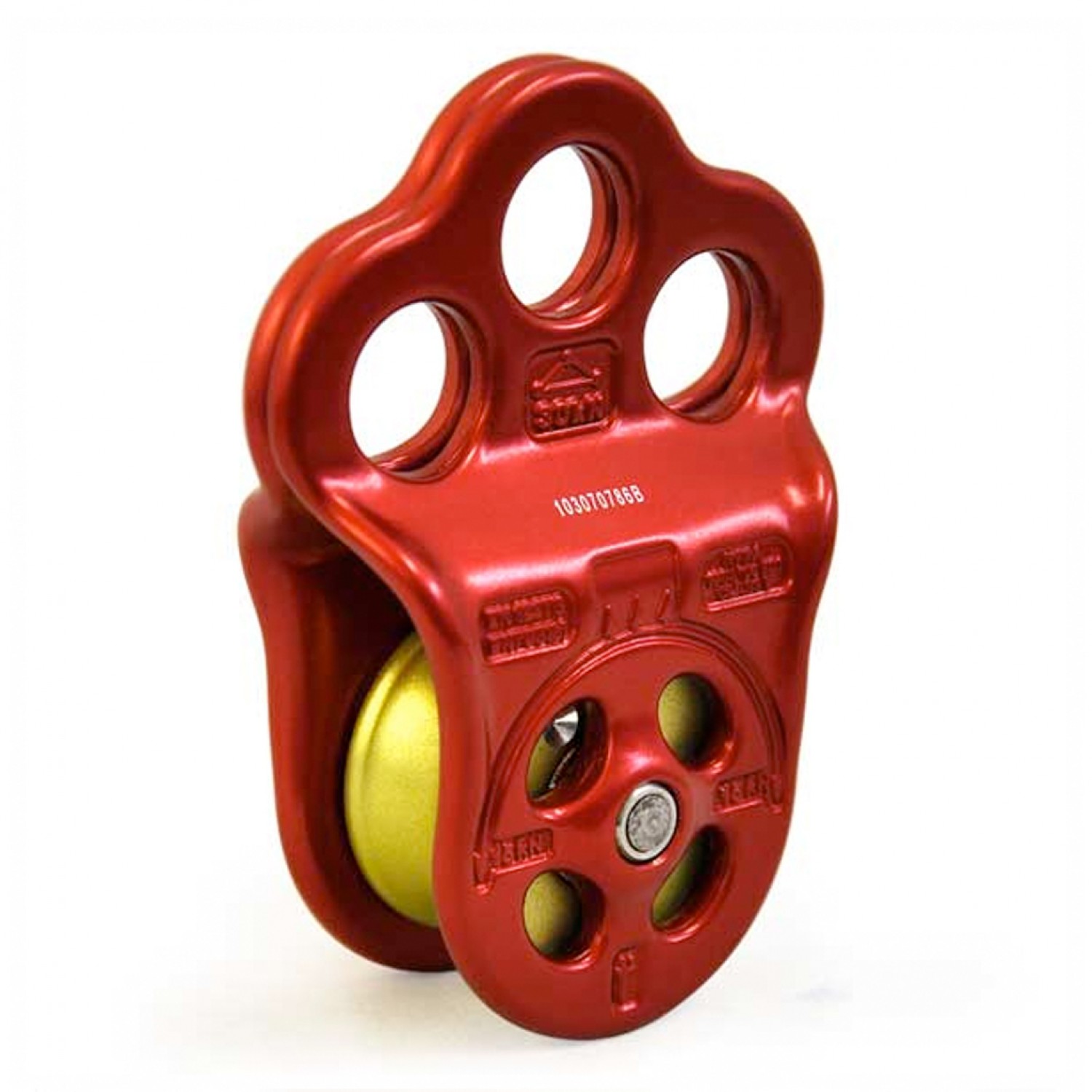

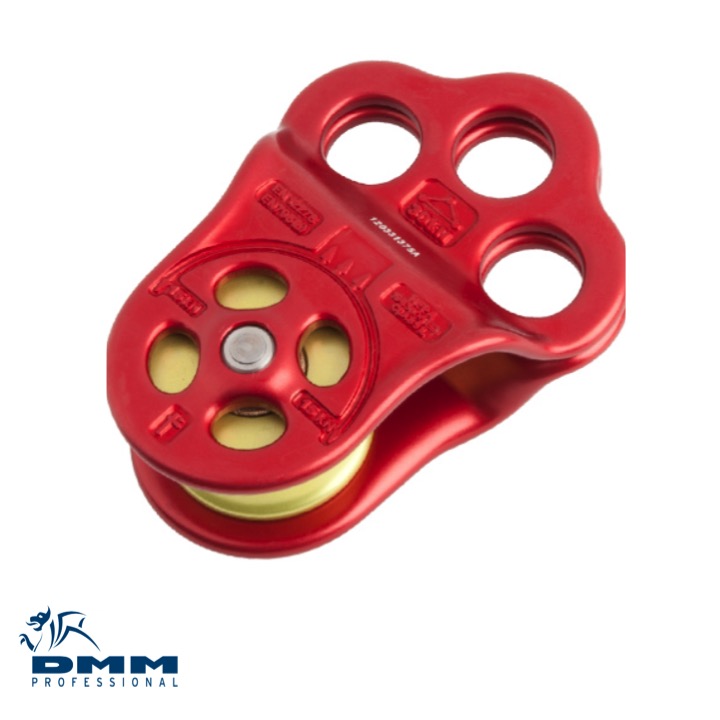

HITCH CLIMBER PULLEY

The DMM Triple Attachment Pulley combines the high efficiency of our pulleys with a small three hole rigging plate to give an extremely versatile piece of equipment. It can obviously be used as a standard pulley, but the additional holes allow it to be guided or controlled without adding any complication into the system.

All the edges are rope and textile friendly allowing direct attachment that minimises bulk and maximises versatility.

Pre-lubricated Oilite bushing give minimal efficiency losses and minimal maintenance requirements.

An integral part of the DMM/Teufelberger ‘Hitch Climber’ set up developed in conjunction with Treemagineers.

Features

• Triple attachment points for special applications
• Hot forged aluminium side plates provide strength and durability
• Heat treated stainless steel spindles for high strength and corrosion resistance
• Pre lubricated Oilite bushing for ultra smooth operation
• Riveted and tamperproof assembly
• Recommended for arborist and rescue applications
• Anodised to BS EN 7599:2010 AA10 Sealed for corrosion protection
• Product Code: PUL100RD

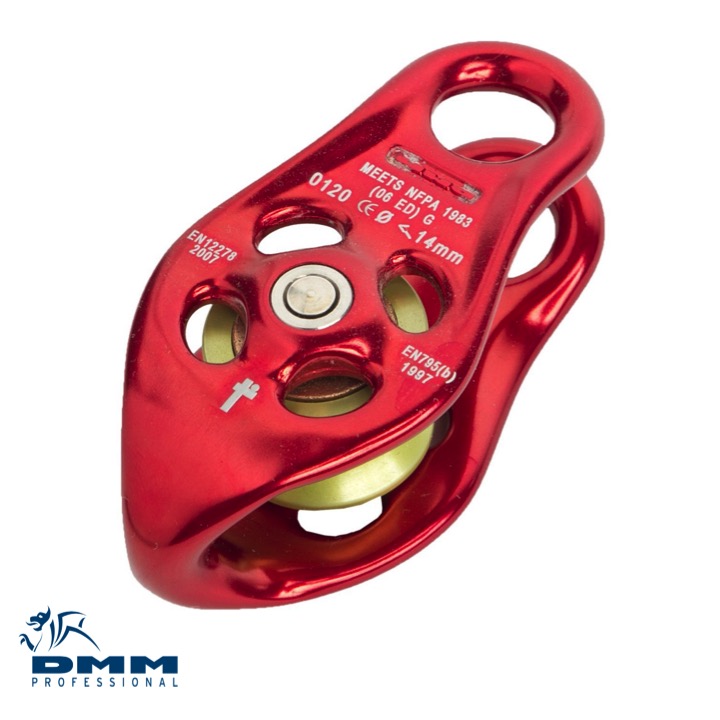

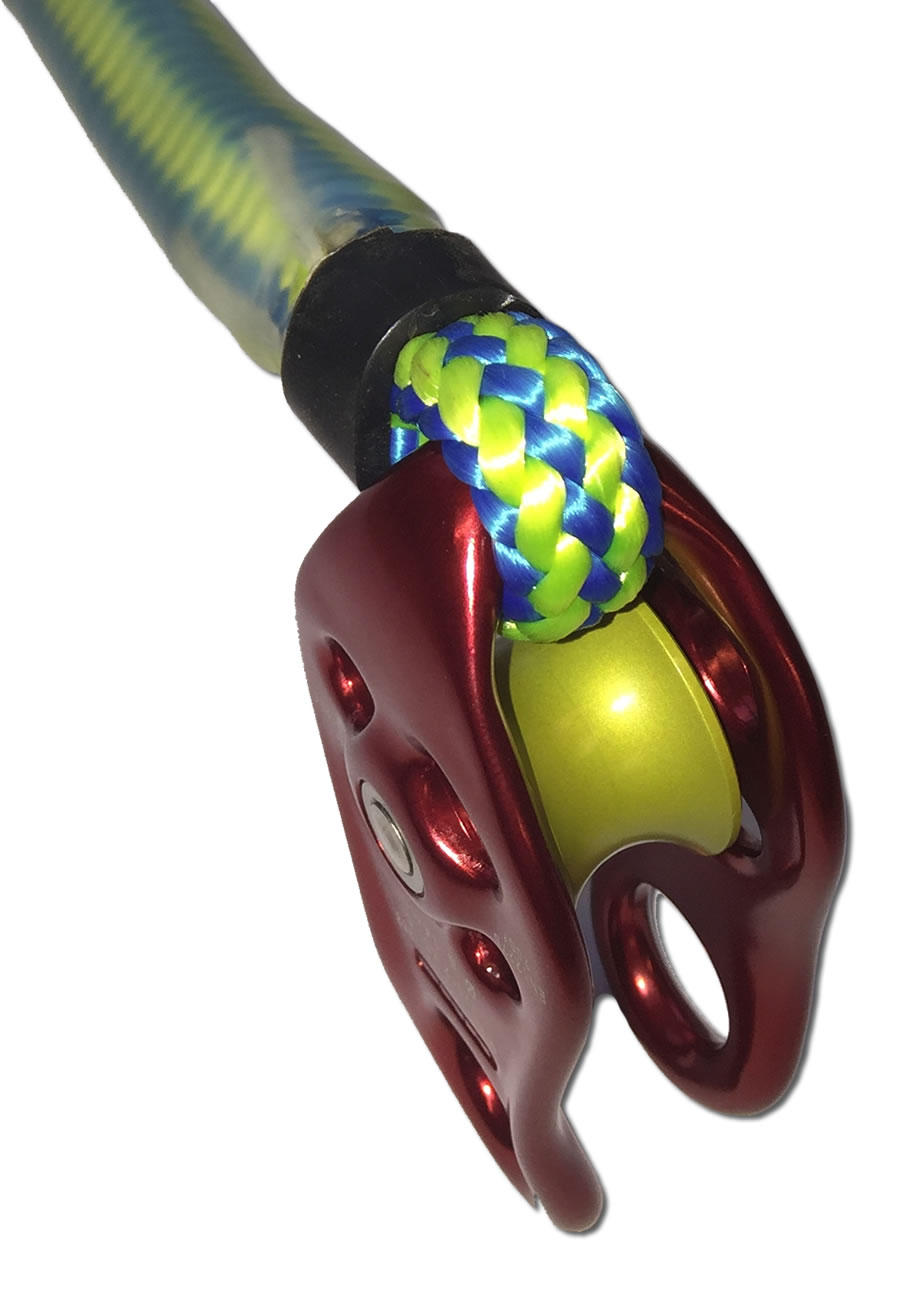

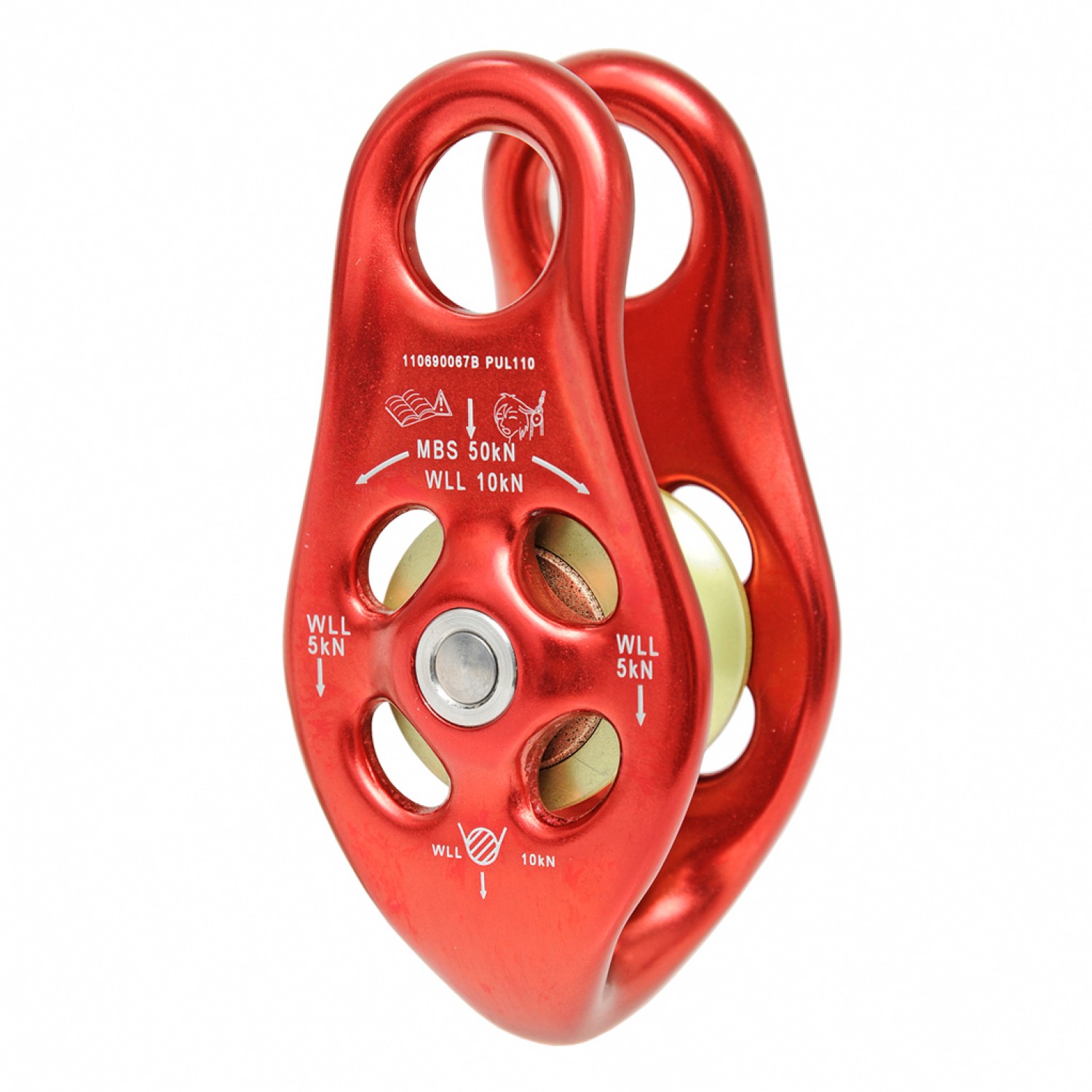

PINTO PULLEY

With hardly a straight line in sight, the hot forged curves and fairlead flares of our Pinto Pulley make for an ultra efficient, ‘textile friendly’ environment. Clip, hitch, splice or thread the anchor holes or the becket to give numerous work and rescue configurations (textile attachments can help minimise any torsional build up in closed systems).An indispensable component of the DMM/Teufelberger CE lanyard system, but equally at home on all other mechanical advantage systems or lifelines.Comes with minimum fuss, highly efficient Oilite bushings. Pre lubricated Oilite bushing for smooth operation and minimal maintenance

Spacers are available to support the anchor holes when textile connecting elements compress the side plates. Hot forged aluminium side plates provide strength and durability. Heat treated stainless steel spindles for high strength and corrosion resistance. Riveted and tamperproof assembly

Recommended for aborist, rescue, hauling and many applications where friction reduction is required

Product Code: PUL110

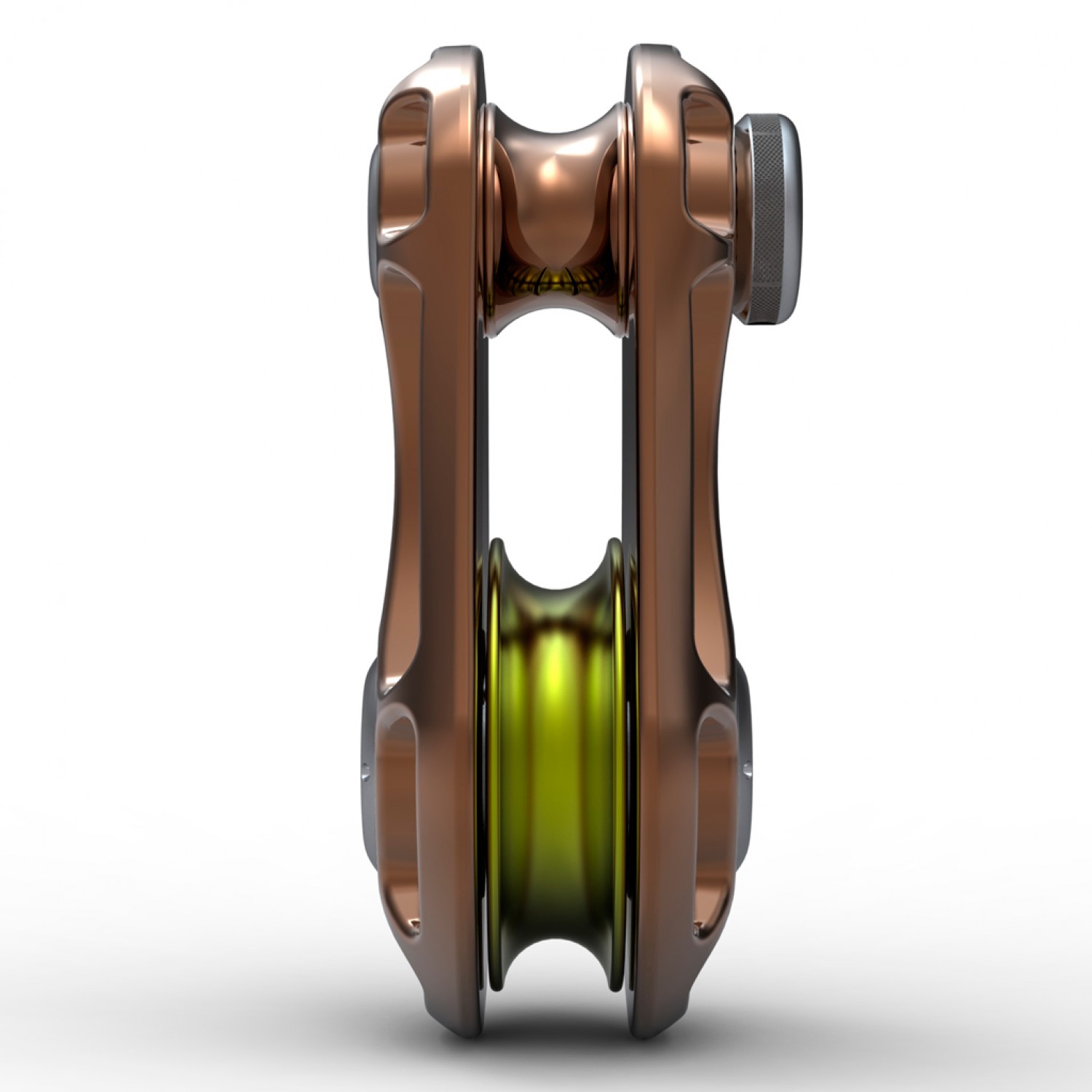

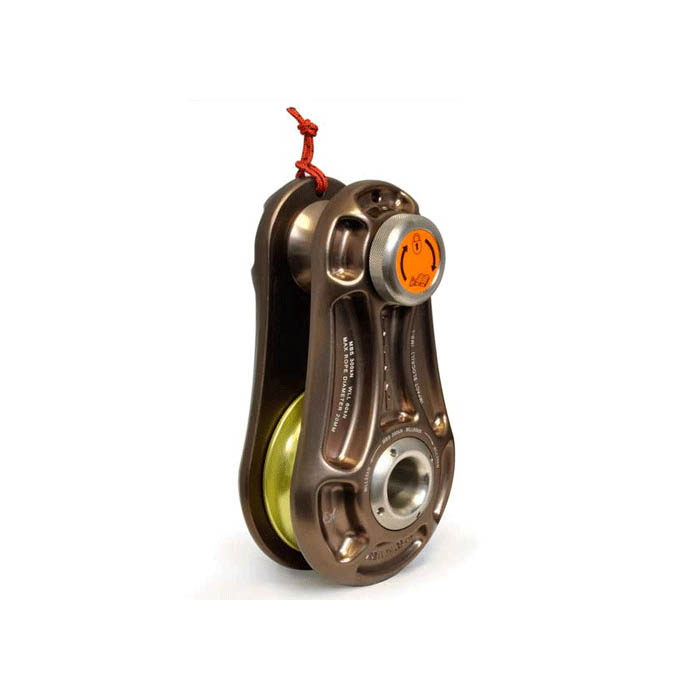

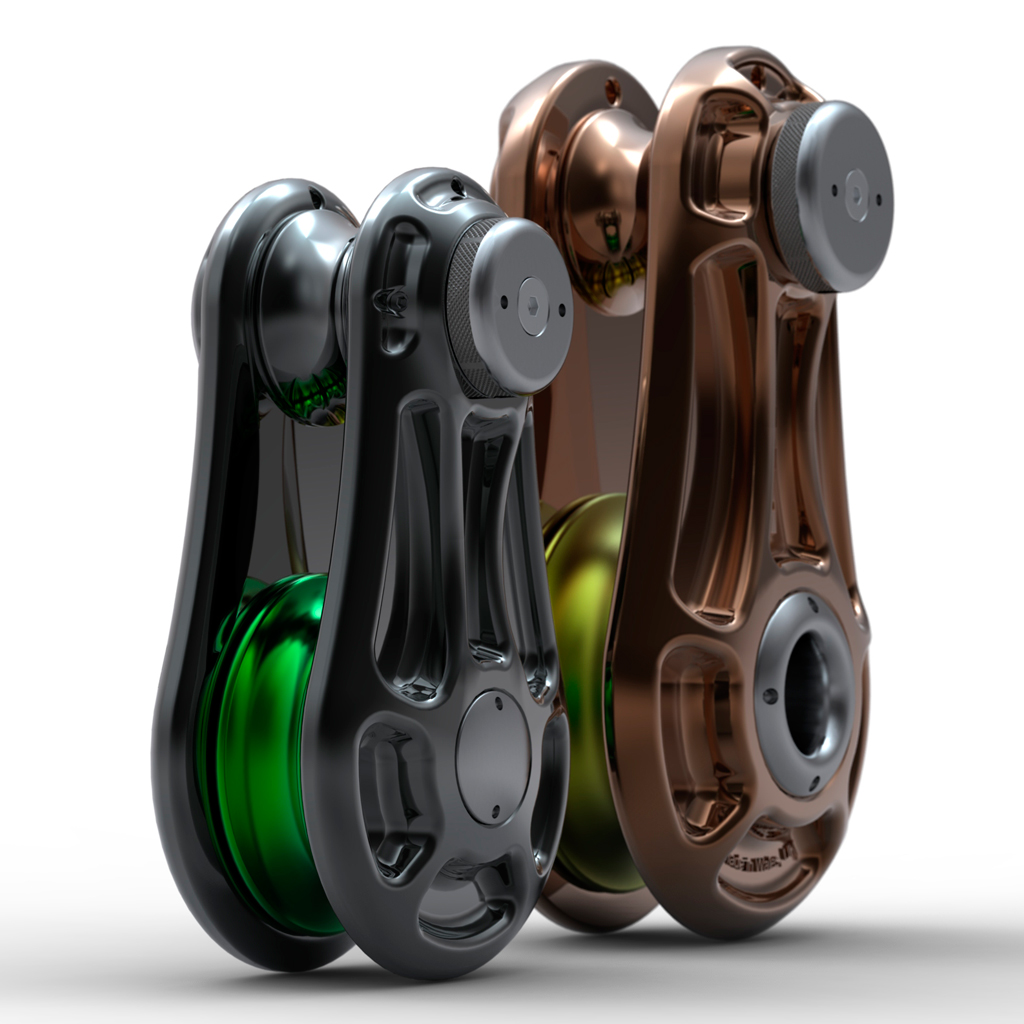

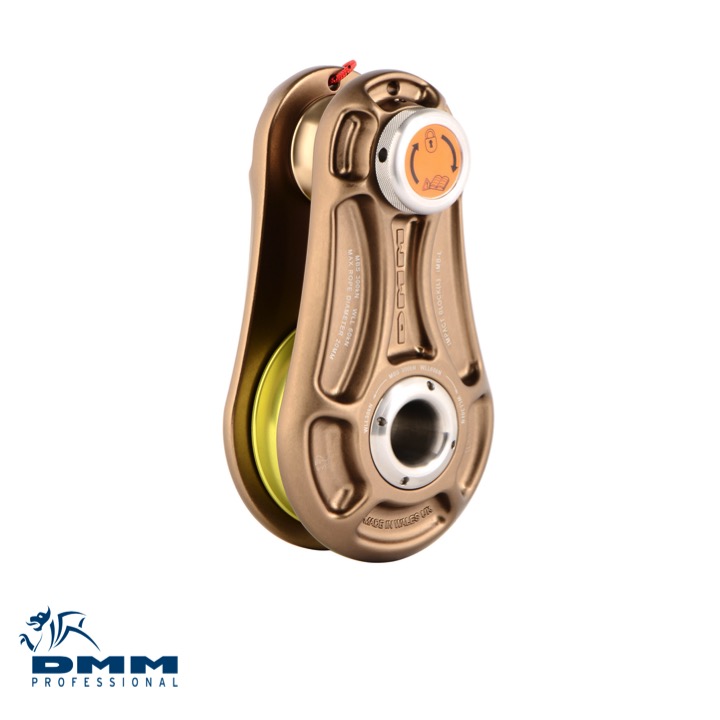

IMPACT BLOCK (LARGE)

A product called an ‘Impact Block’ it’s only purpose in life, apart from looking good, is to help absorb huge impacts created by the harsh dynamics of heavy arborist work. When rigged as part of an impact system, DMM blocks offer maximum security and strength with minimum fuss and weight. Every component, every curve, every surface has been analysed, designed and engineered to deliver the best performance in terms of dynamics, resistance and alignment.

The combination of high quality materials and our hot forging process gives a rope friendly, durable and robust block that can withstand the abuses of advanced tree felling and rigging work. These blocks have gone through a rigorous dynamic and static testing regime, and have been mis-treated and abused as much as possible; the end result is a highly functional product with an impressive strength to weight ratio. If ever there was a component in a safety chain destined to take abuse, this is it…

With a massive Minimum Breaking Strength (MBS) of 300kN and a Working Load Limit (WLL) of 60kN, the Large Impact Block sets new standards in handling massive drops.Designed for use in any industry when loads may be dropped onto rigging with considerable impact forces. The combination of high quality materials and advanced production processes has ensured a rope friendly, durable and robust product. During development, Impact Blocks have passed demanding dynamic, torsion and static testing regimes. The end result is a highly functional product with an incredible strength to weight ratio. These blocks were made to tolerate large forces and look good.

Features

• Code: IMB-L
• Weight: 3.47kg
• Minimum Breaking Strength(MBS): 300kN
• Working Load Limit(WLL): 60kN
• Max Rope Diameter: 20mm
• Dimensions: 225 x 120 x 97mm
• Rounded edges to cheekplates maintain low rope abrasion when rope is fed ‘unfair’
• Fairlead flares help maintain high working efficiency
• Thrust surfaces increase tolerance to external loading of spindle and anchor pin
• Lightweight attachment sling facilitates hauling of block, sling and rope to the climber and helps with handling, in tree stowage and workshop storage
• Direct connection to cordage, the anchor slings helps ensure correct neighbour component compatibility
• High efficiency oilite bushings to reduce friction

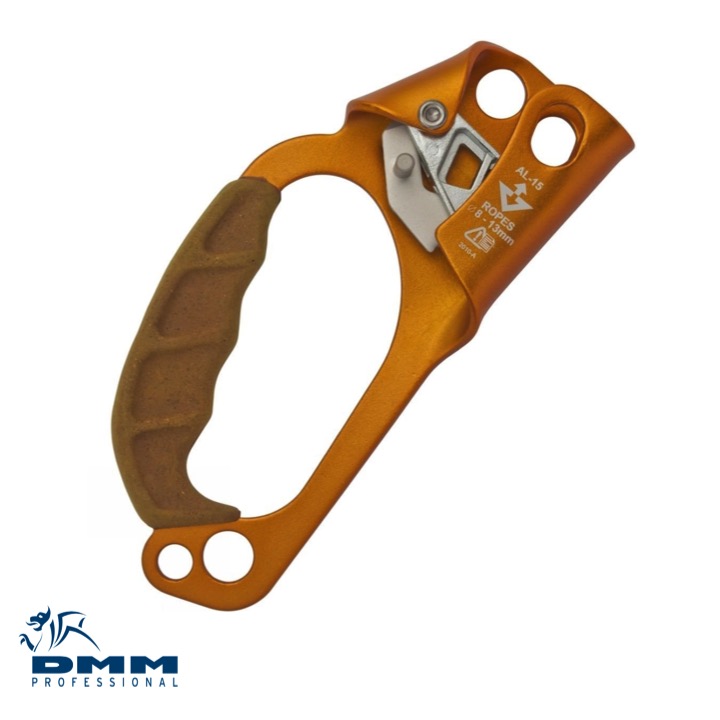

ANTHRON ASCENDER

The Anthron Ascender with grip is a comfortable and versatile handled ascender. It uses the same rope locking components of all their rope climbing devices but has a large volume handle on to make rope climbing as simple as possible.

High and low connection holes maximises versatility in a rescue/hauling situation. Works perfectly in conjunction with their Chest Ascender or Right handed ascender for efficient rope climbing.

Suitable for rope diameters 8-13mm

• Weight: 205g
• Rope Diameter: 8 to 13mm
• Dimensions: 197 x 93 x 23mm
• Code: AL-15
• Conforms to EN 567:1997 (Rope clamps. Safety requirements and test methods)
• For use on dynamic and static ropes
• Anthron Handled ascenders provide comfortable gloved hand operation
• Also available in a right hand version
• Product Code: Al-15

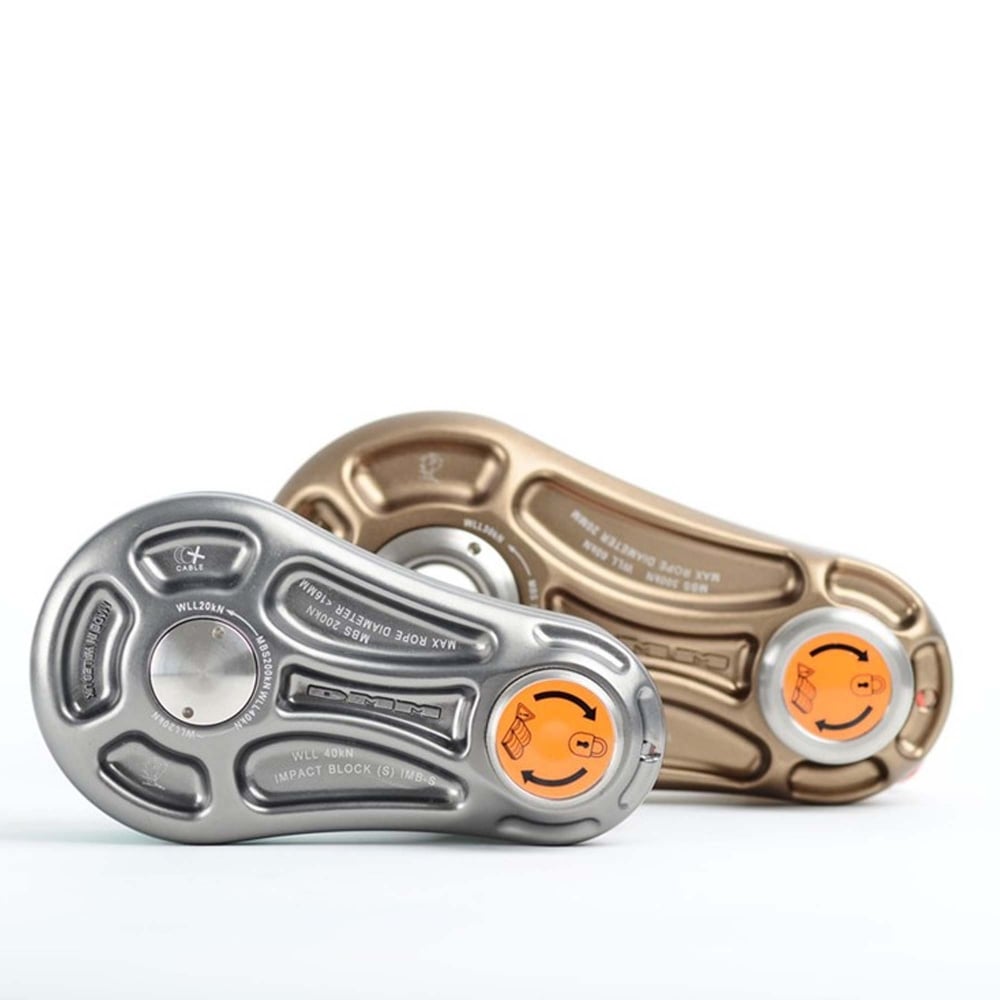

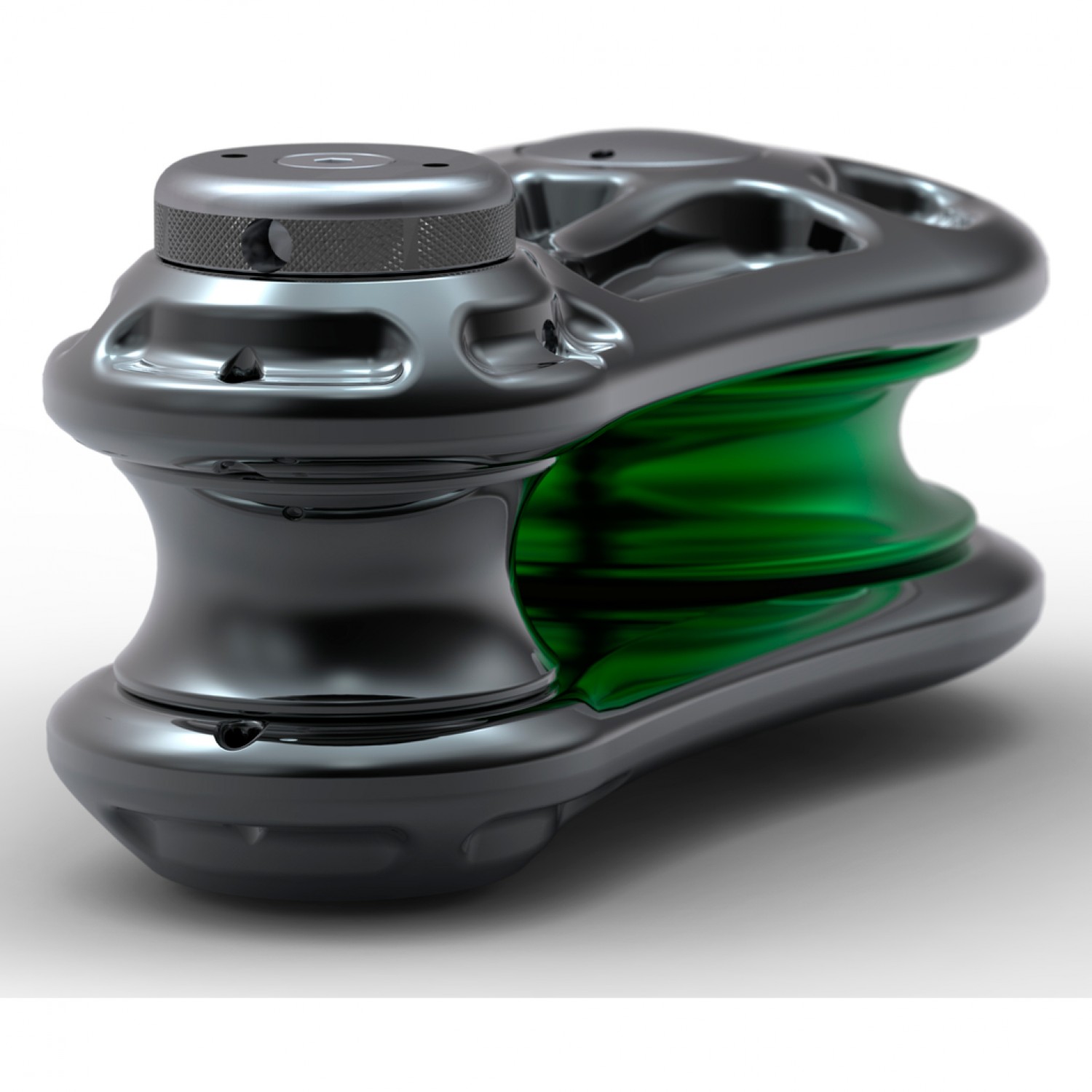

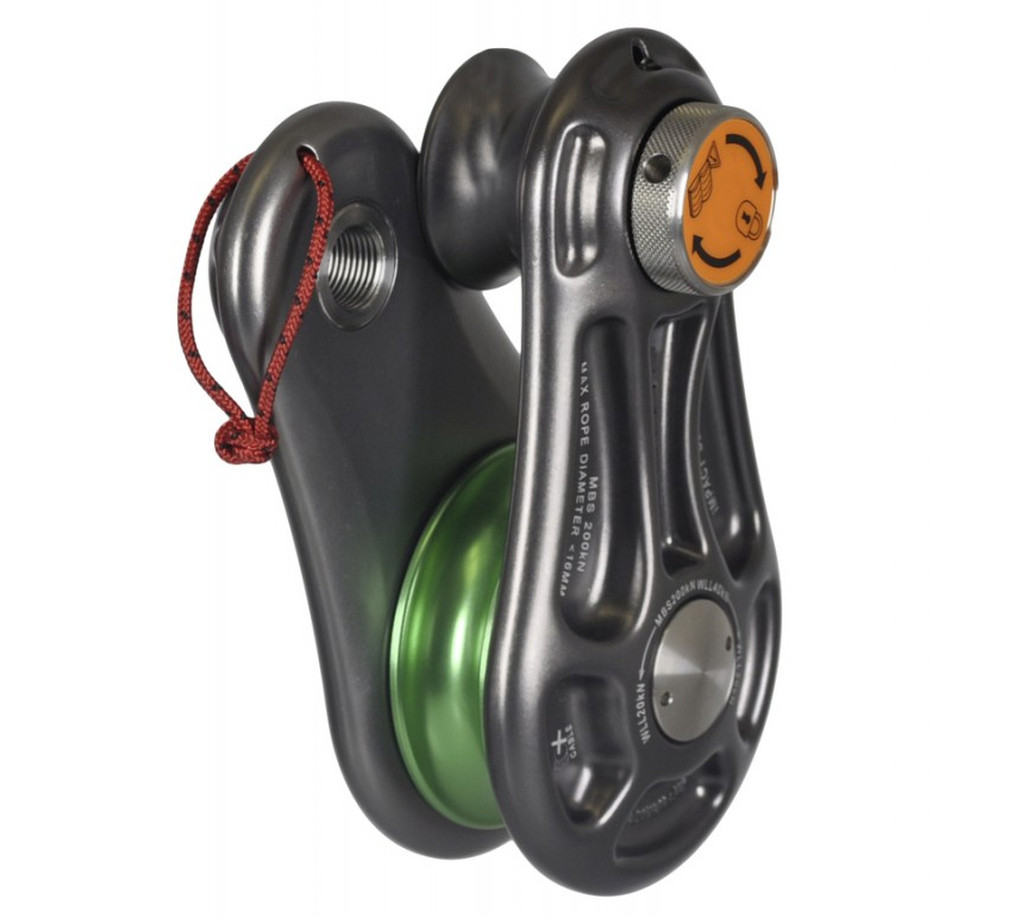

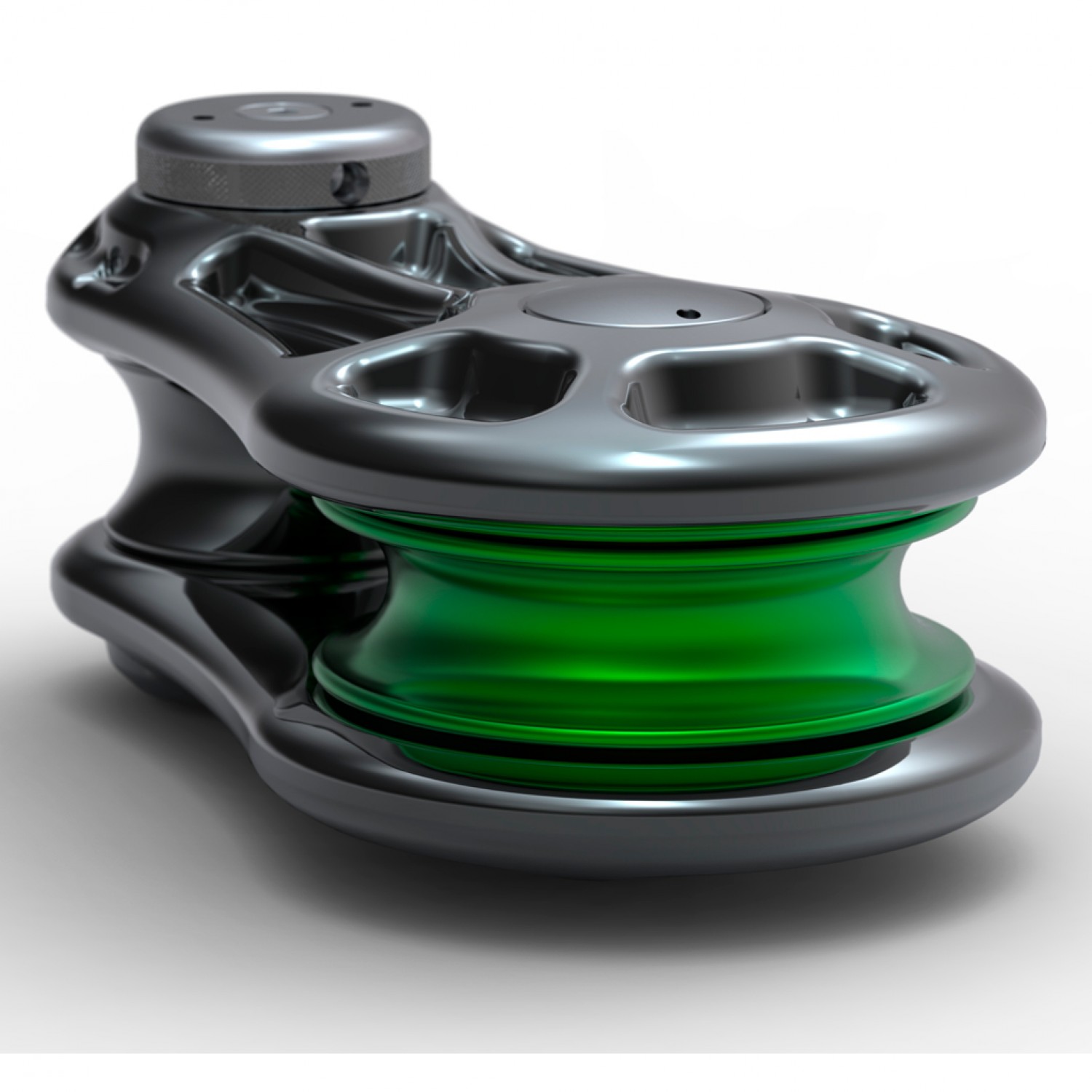

IMPACT BLOCK (SMALL)

The Small Impact Block is small by name, small by nature (relatively speaking) yet still big in strength. With a massive Minimum Breaking Strength (MBS) of 200kN and a Working Load Limit (WLL) of 40kN, it is incredibly strong, yet can almost be carried around on a harness. Designed for use in any industry when loads may be dropped onto rigging with considerable impact forces. The combination of high quality materials and advanced production processes has ensured a rope friendly, durable and robust product. During development, Impact Blocks have passed demanding dynamic, torsion and static testing regimes. The end result is a highly functional product with an incredible strength to weight ratio. These blocks were made to tolerate large forces and look good.

Features

• Rounded edges to cheekplates maintain low rope abrasion when rope is fed ‘unfair’
• Upper sheave opens via a threaded locking axle for added security
• Thrust surfaces increase tolerance to external loading of spindle and anchor pin
• Lightweight attachment sling facilitates hauling of block, sling and rope to the climber and helps with handling, in tree stowage and workshop storage
• Direct connection to cordage, the anchor slings helps ensure correct neighbour component compatibility
• High efficiency oilite bushings to reduce friction

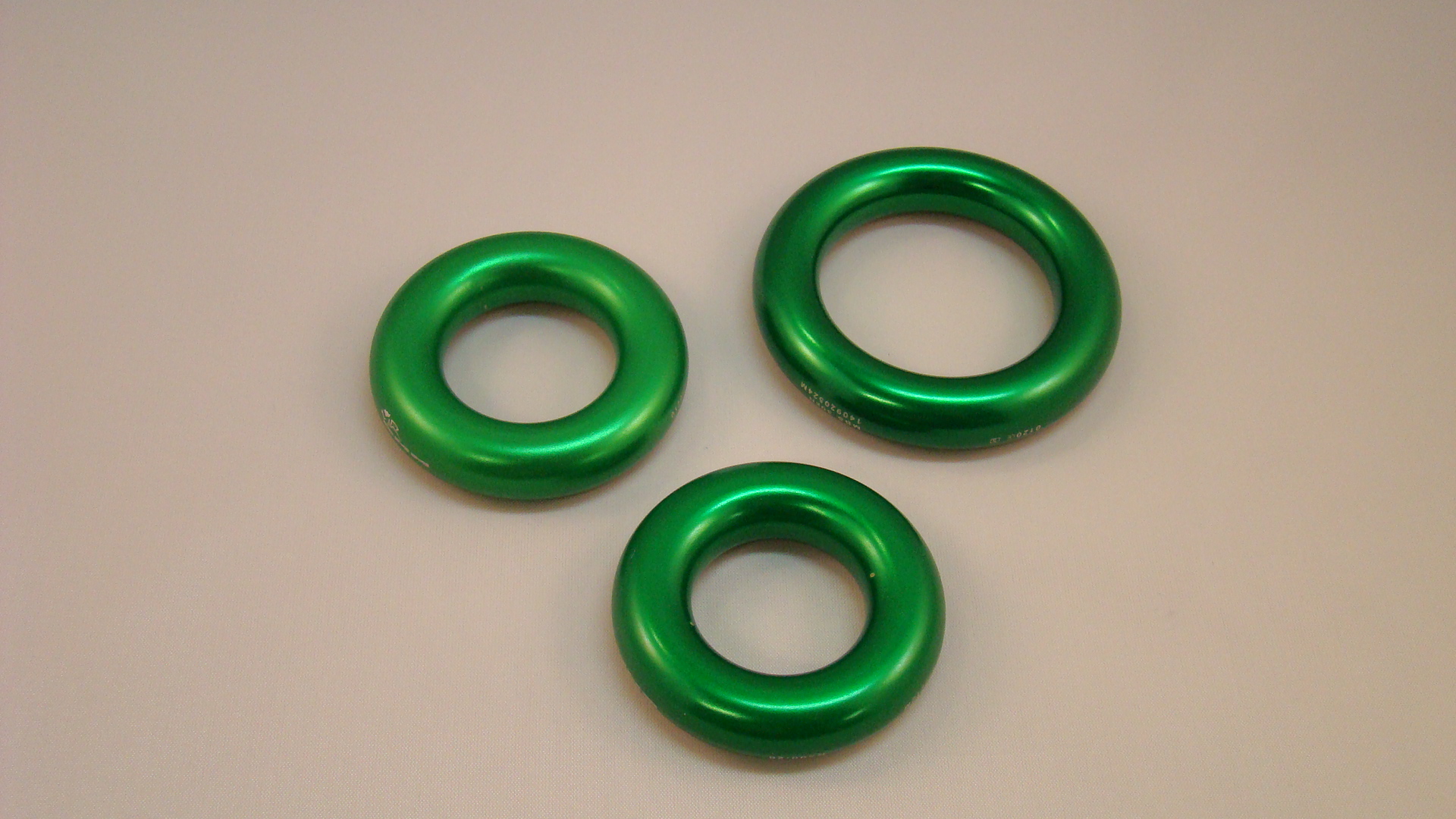

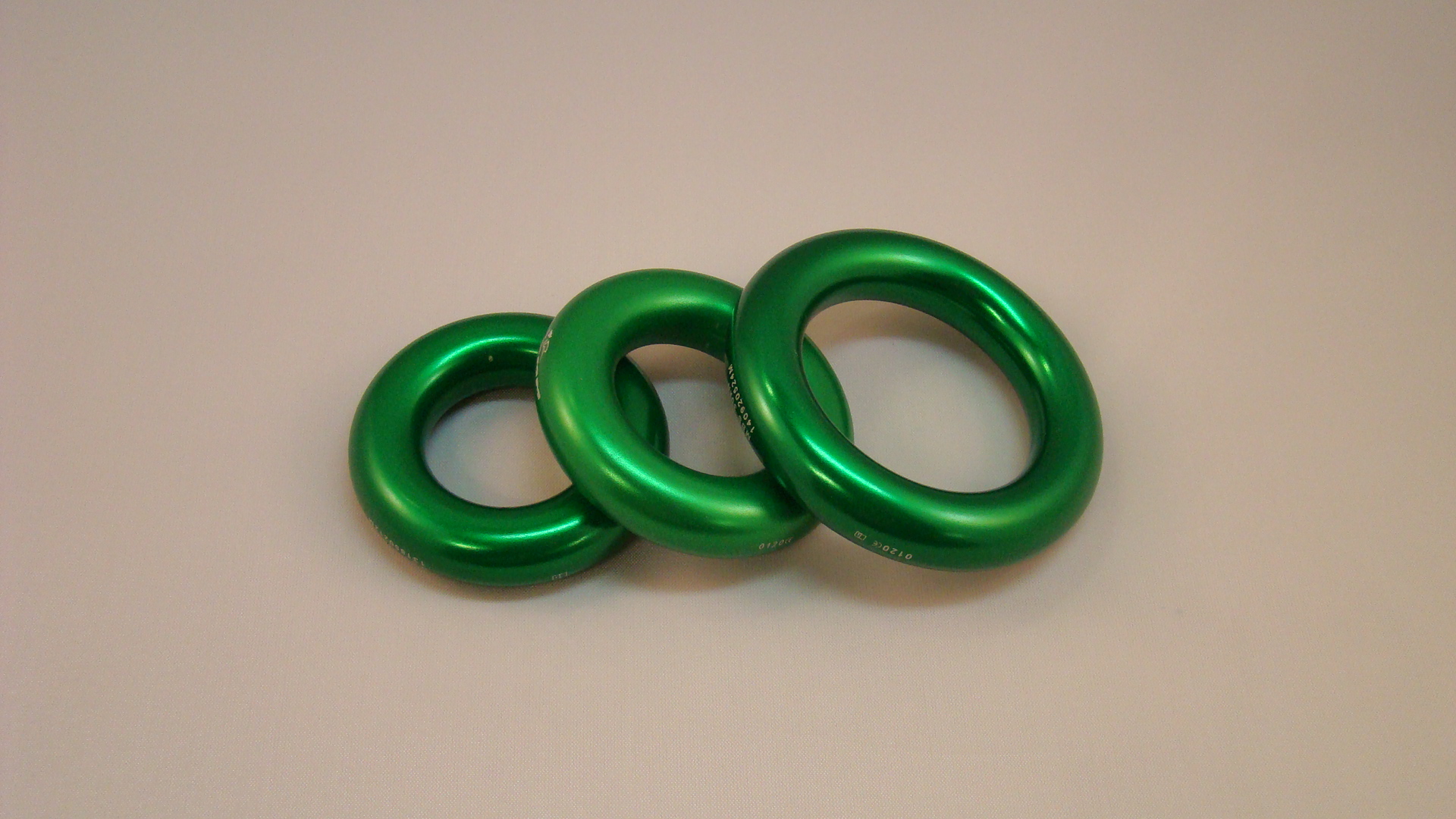

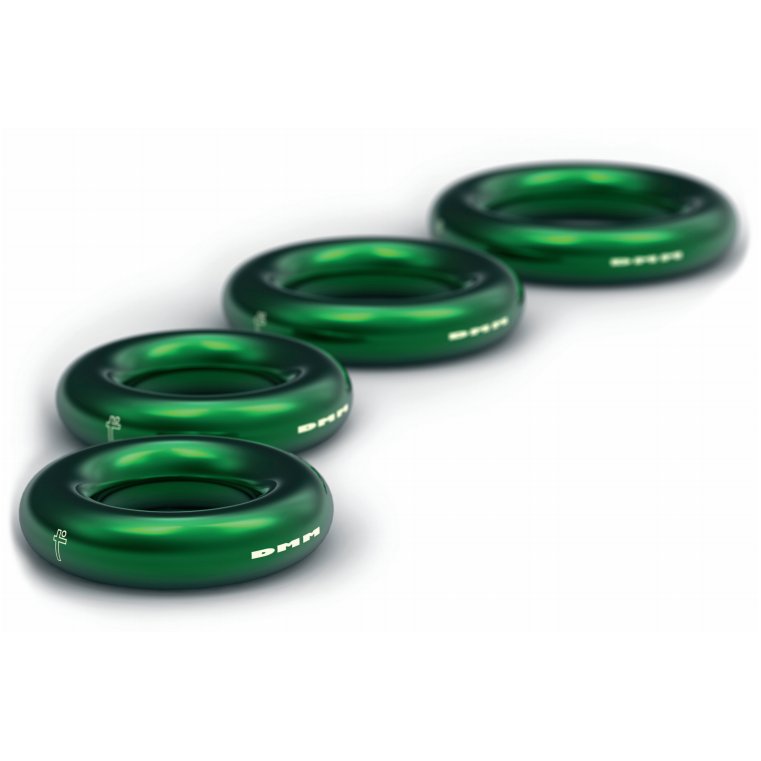

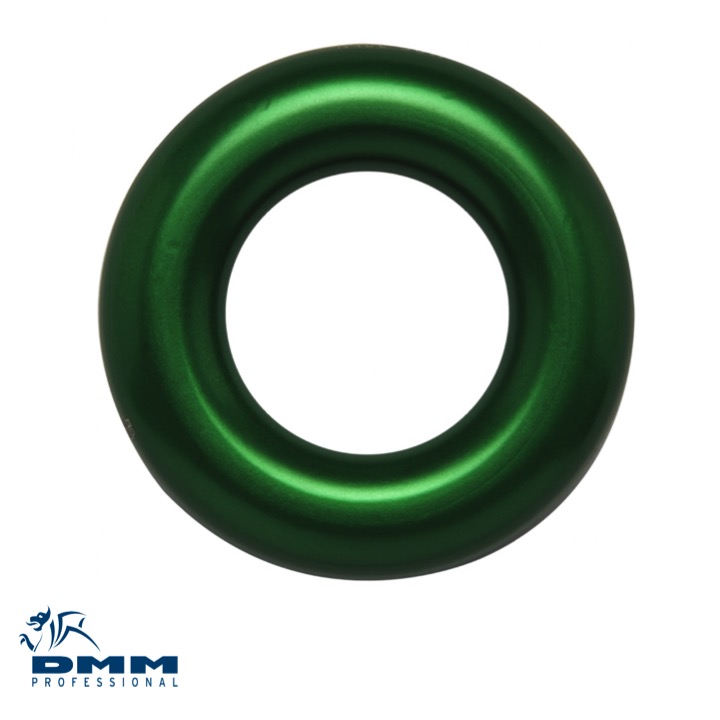

ANCHOR RING 34 / 40

Anchor rings are beautifully simple components that can be used in the most complicated systems. By creating a ‘Master Link’ universal connection point for connectors or textiles that can withstand forces from 360 degrees, numerous rigging and work situations can be made safer and simpler. Weighing less than a connector, they can be carried easily on a harness and attached in seconds. Perfect for lifelines, rescue, stretcher management, treecare, etc. They combine beautifully with DMM Revolver locksafe connectors to create a ‘swinging captive eye’ Also, indispensable as component parts of ‘Working at Height’ systems, our anchor rings allow rescue systems to be implimented quickly and safely.

Features

• Strength: 30kN
• WLL: 6kN
• Dimensions: 34mm internal
• Weight: 49g
• Code: R500-34
• CNC machined from top grade alloy for strength, durability and lightness
• Surface finish facilitates smooth rope operation
• Anodised to BS EN 7599:2010 AA10 Sealed for corrosion protection
• Recommended for aborist use
• Individually marked for traceability
• Product Code: R500-34 , R500-40

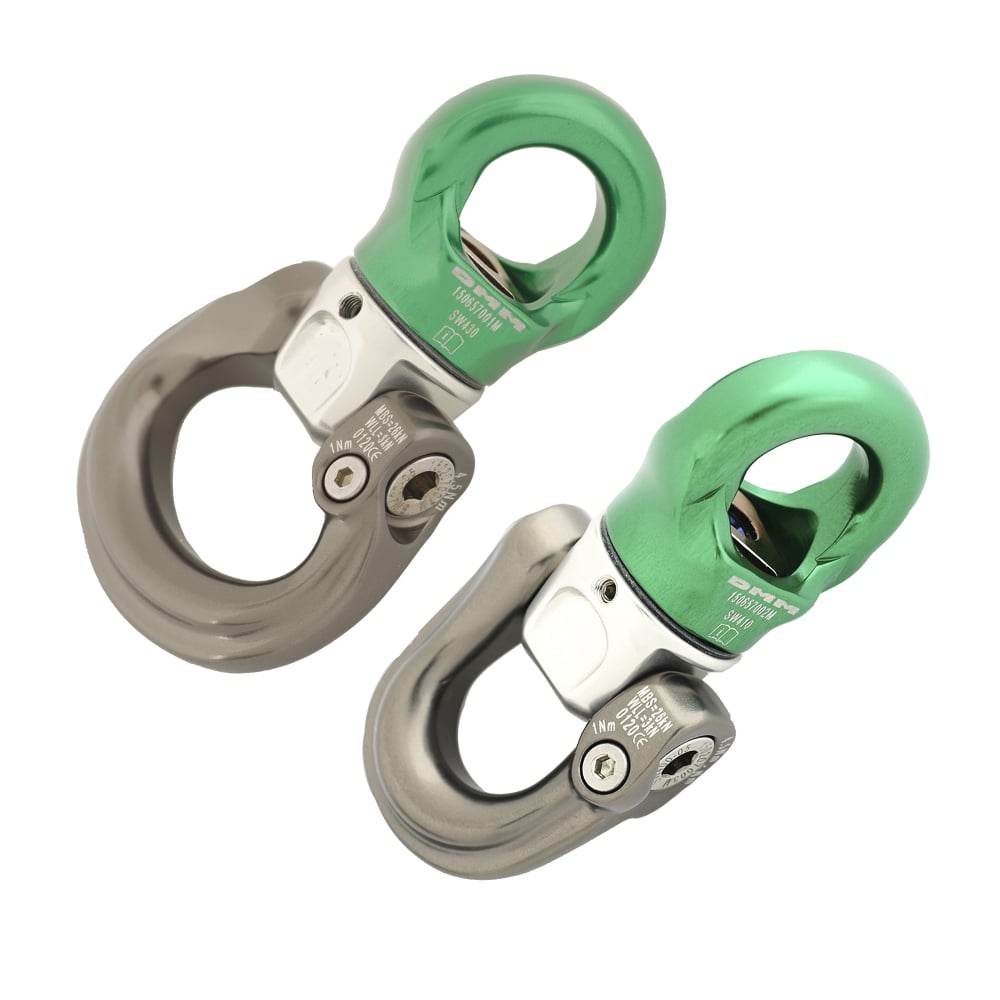

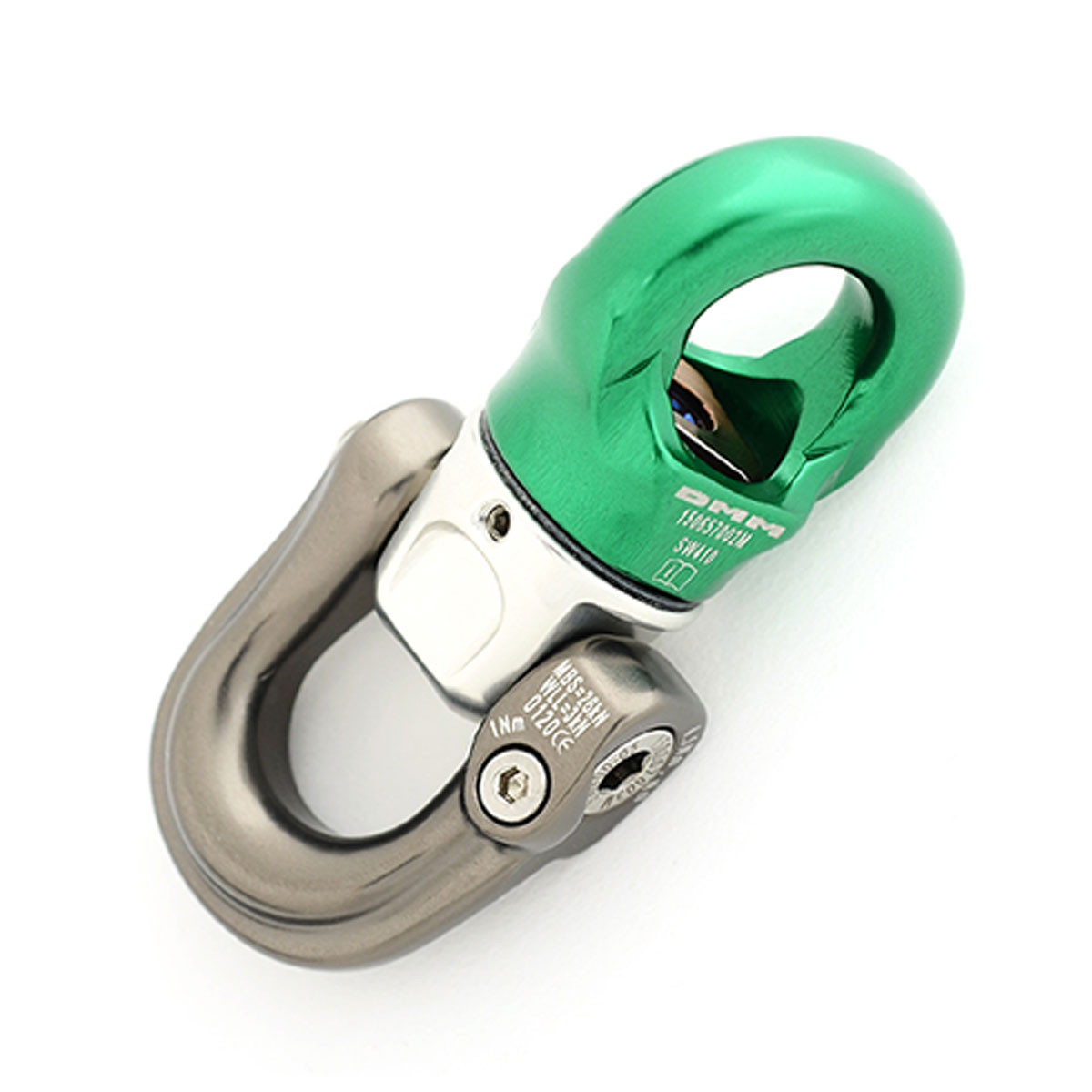

FOCUS S COMPACT SWIVELS

The DMM Focus is a compact, hot-forged swivel designed for use at junctions where torsion needs management. A high-quality internal bearing ensures smooth and reliable rotation, while the textile-friendly clip in points are perfect for carabiners or textile elements. The Focus includes a two way locking spindle shackle on one end which allows connection to fixed loops such as wire strops, rigging plates, and harness bridges.

The Focus is a directly connectable swivel that features both swivel and shackle attachments to give you increased connection options.

Available with small or large shackles. The small D-shaped shackle of the Focus S allows for accurate configuration of connectors, while the bow-shaped design of the large shackle on the Focus L eliminates cross loading issues and allows multiple attachment points, ideal for complex rigging setups.

Features

• Weight: 5.39g
• Interior Diameter (Green Swivel): 16mm x 15.64mm
• Interior Diameter (Smaller Shackle): 16mm x 15.64mm
• Interior Diameter (Larger Shackle): 30mm x 20.24mm
• MBS: 26kN
• Working Load Limit (WLL): 3kN
• Textile-friendly
• CNC’d from aluminium
• User maintainable grease port for bearing longevity
• Double locking high tensile stainless steel axles for durability
• Roller thrust bearings for smooth efficiency
• Shackle uses 4mm and 2mm Allen keys to ensure secure locking

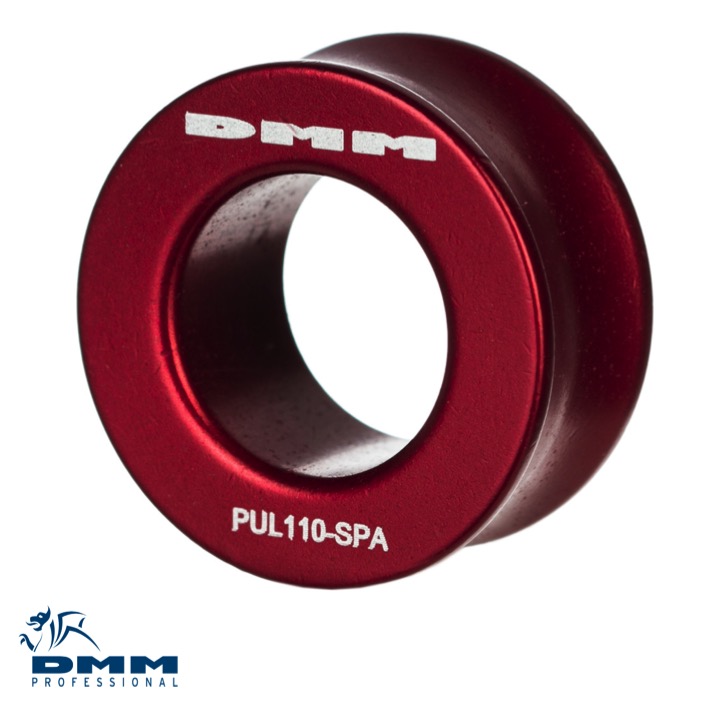

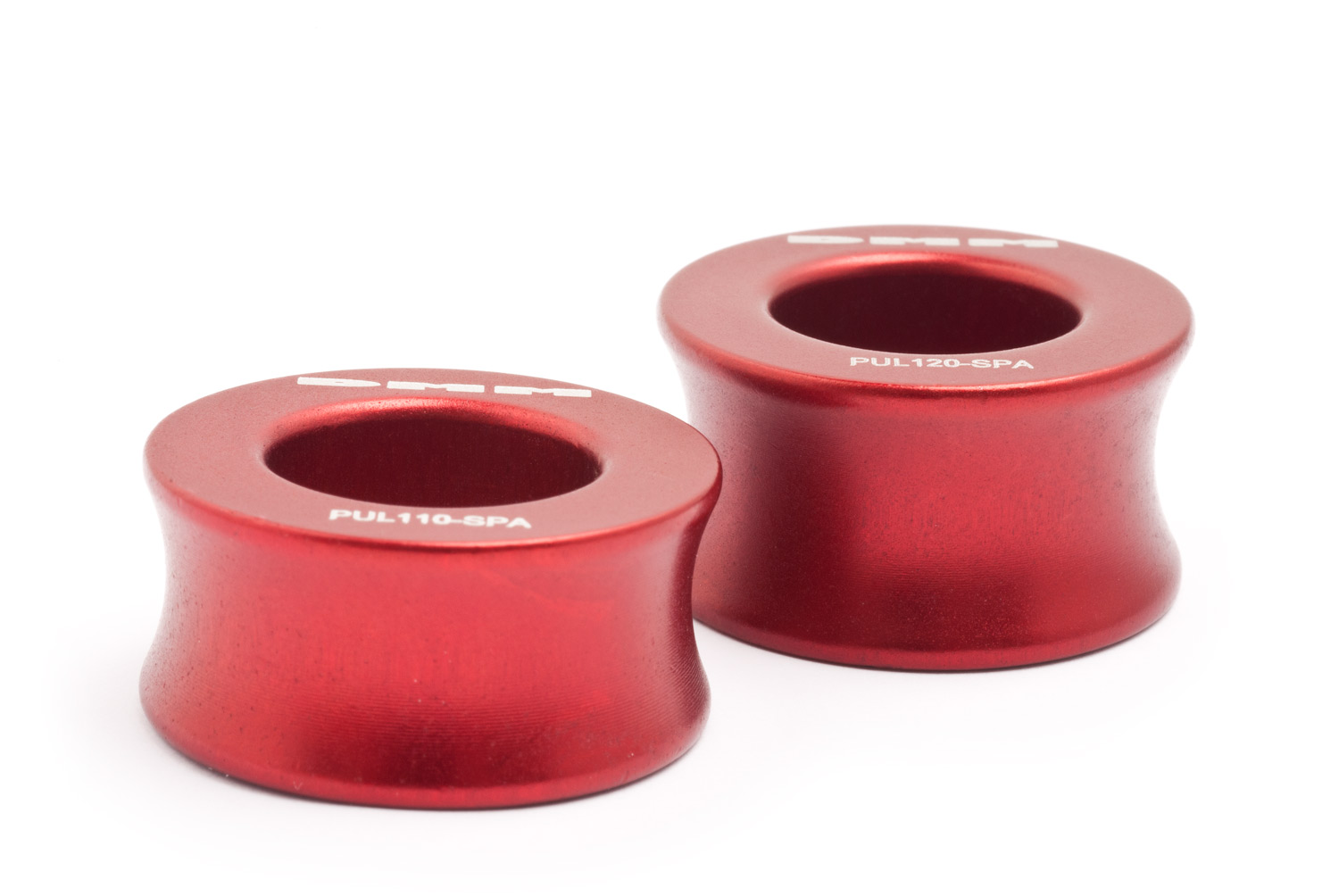

PINTO SPACERS

An essential component for Pinto and Pinto Rig applications where textile connecting elements tend to compress the side plates.

Features

• Hole diameters 15mm
• Two widths: 12mm and 14m

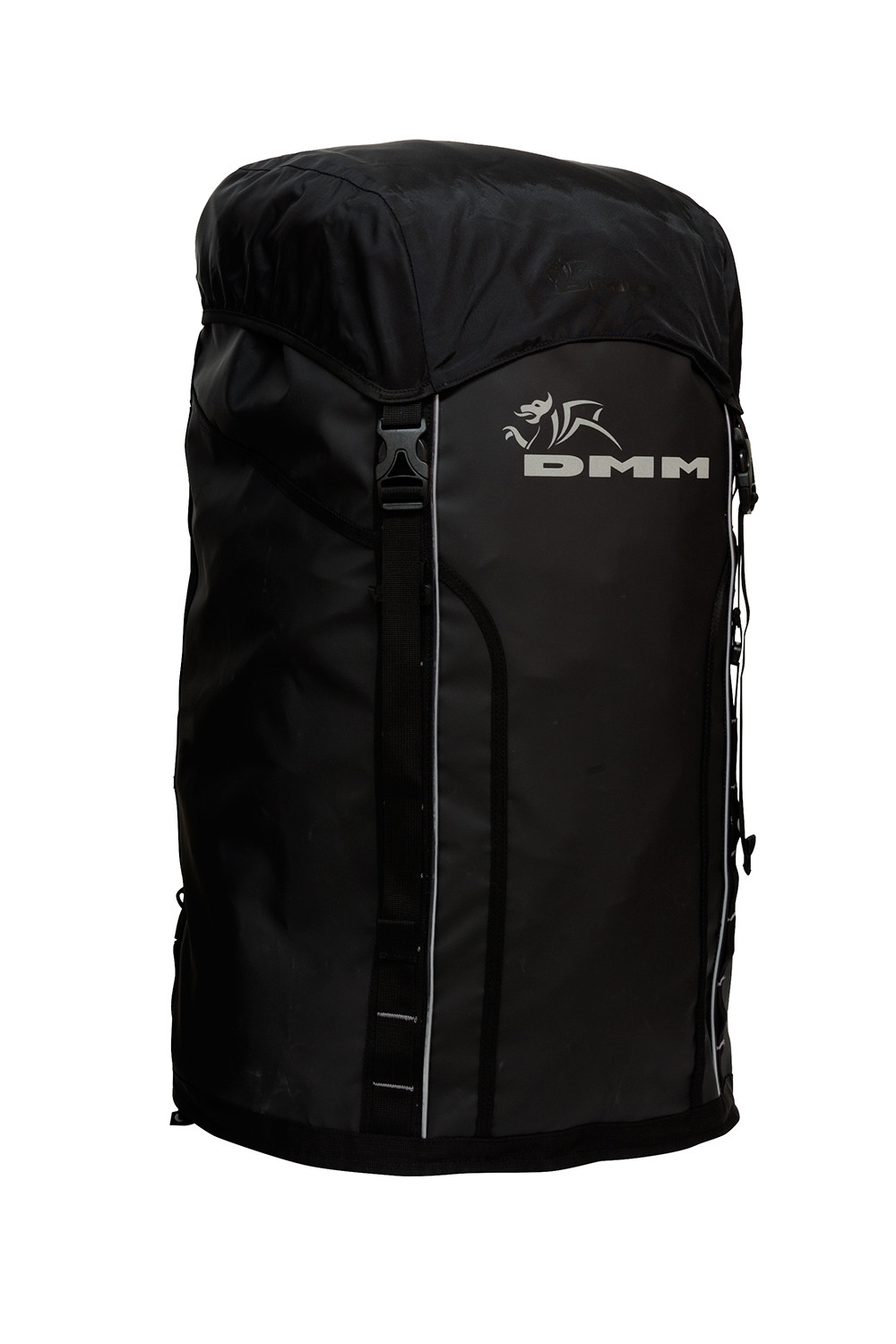

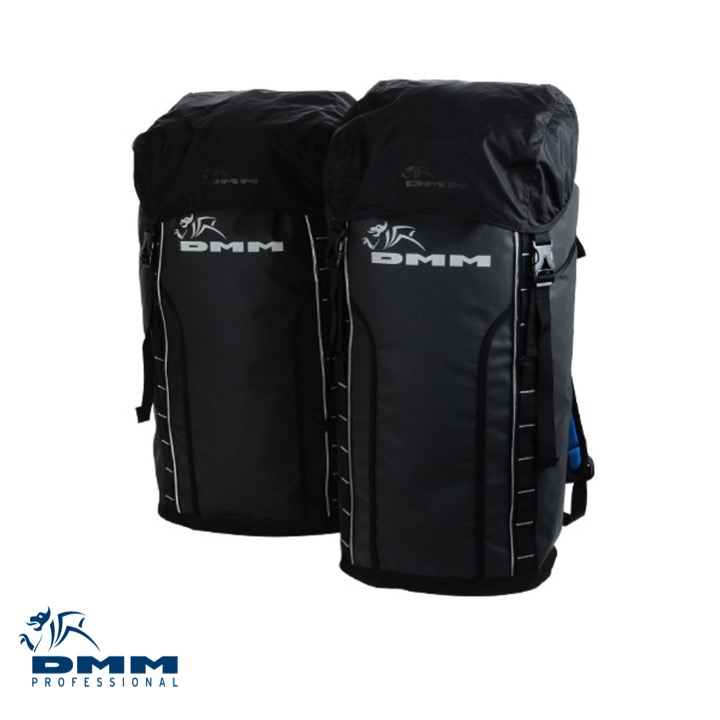

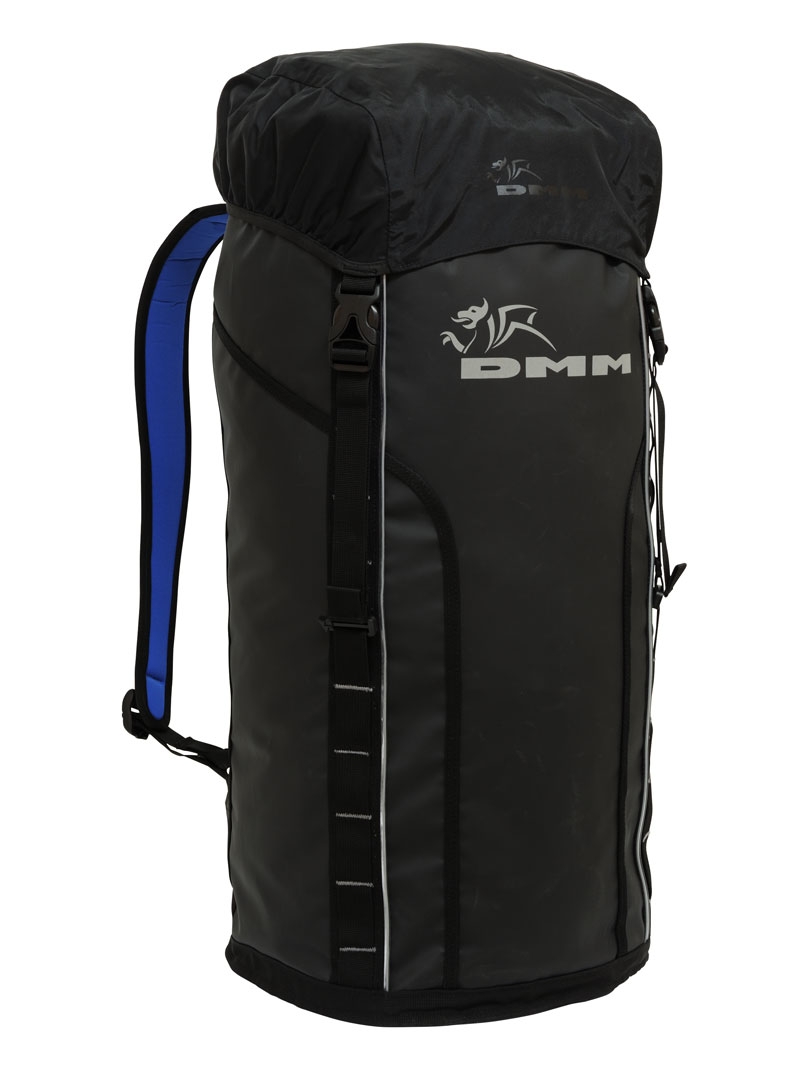

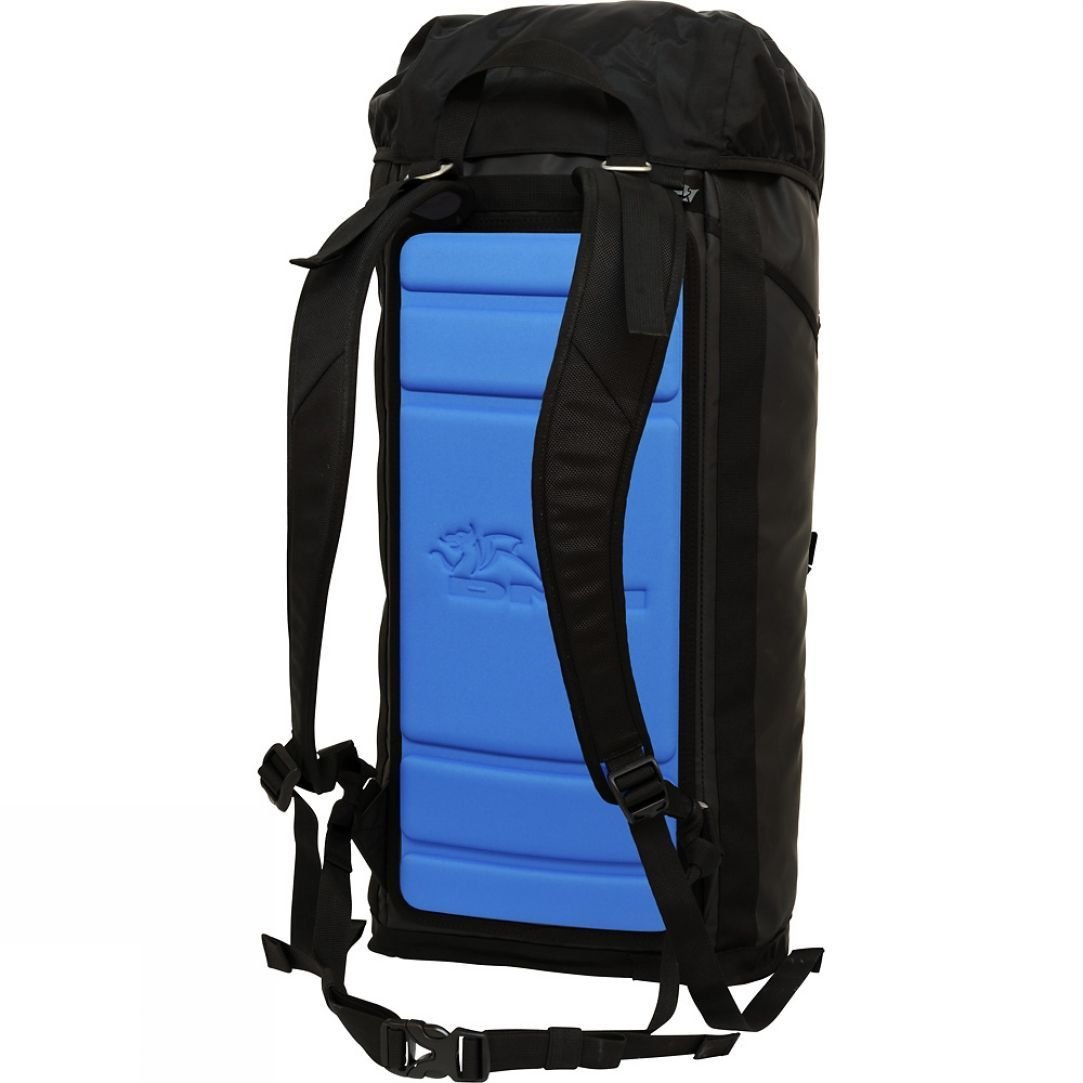

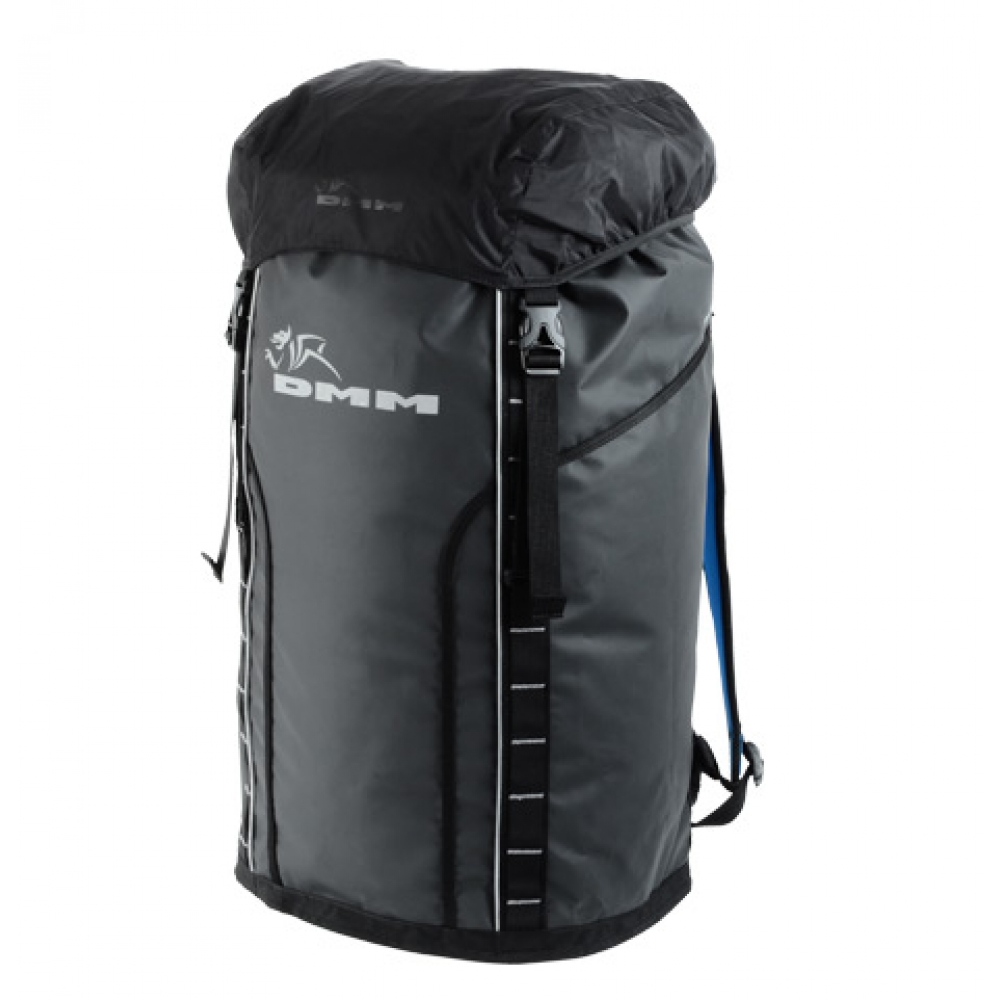

PORTER ROPE BAG

The new DMM Tool Bags are essential pieces of equipment for any technician who has to carry equipment to a worksite at height. Easy opening top and semi-rigid ‘Equal D’ cylinder shape make it simple in use. Multiple clipping and racking options help keep dropped object potential to a minimum.

The DMM Porter range of bags will take 45 and 70 litres, with a blow moulded back panel and substantial carry system. They are designed for carrying loads over greater distances than the Transit bags. The Porter also has a detachable waterproof lid and heavy duty top handles.

Features

• Porter 45 — Volume: 45L, Height: 62cm, Approx. Diameter: 30cm
• Porter 70 — Volume: 70L, Height: 62cm, Approx. Diameter: 36cm
• Made from heavy duty Tarpaulin for strength and durability
• Removable lid
• Draw cord closure
• Reflective piping and logo for night locating
• Interior pocket
• Interior tie off loops to tie rope ends
• Daisy chain outside webbing for kit connection
• Top compression straps for additional kit
• Removable rucksack straps

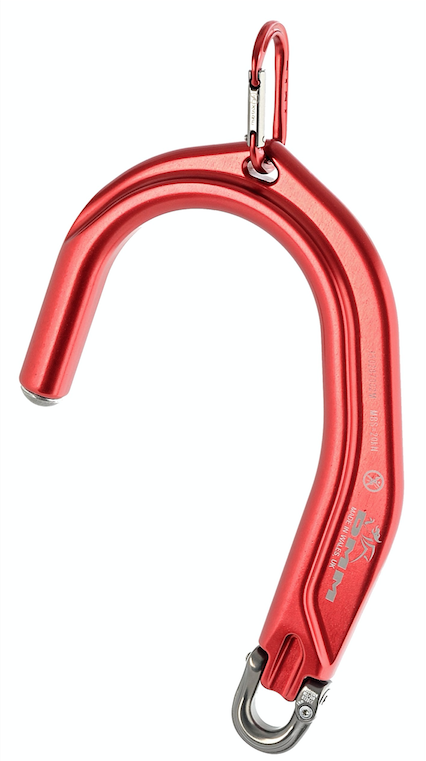

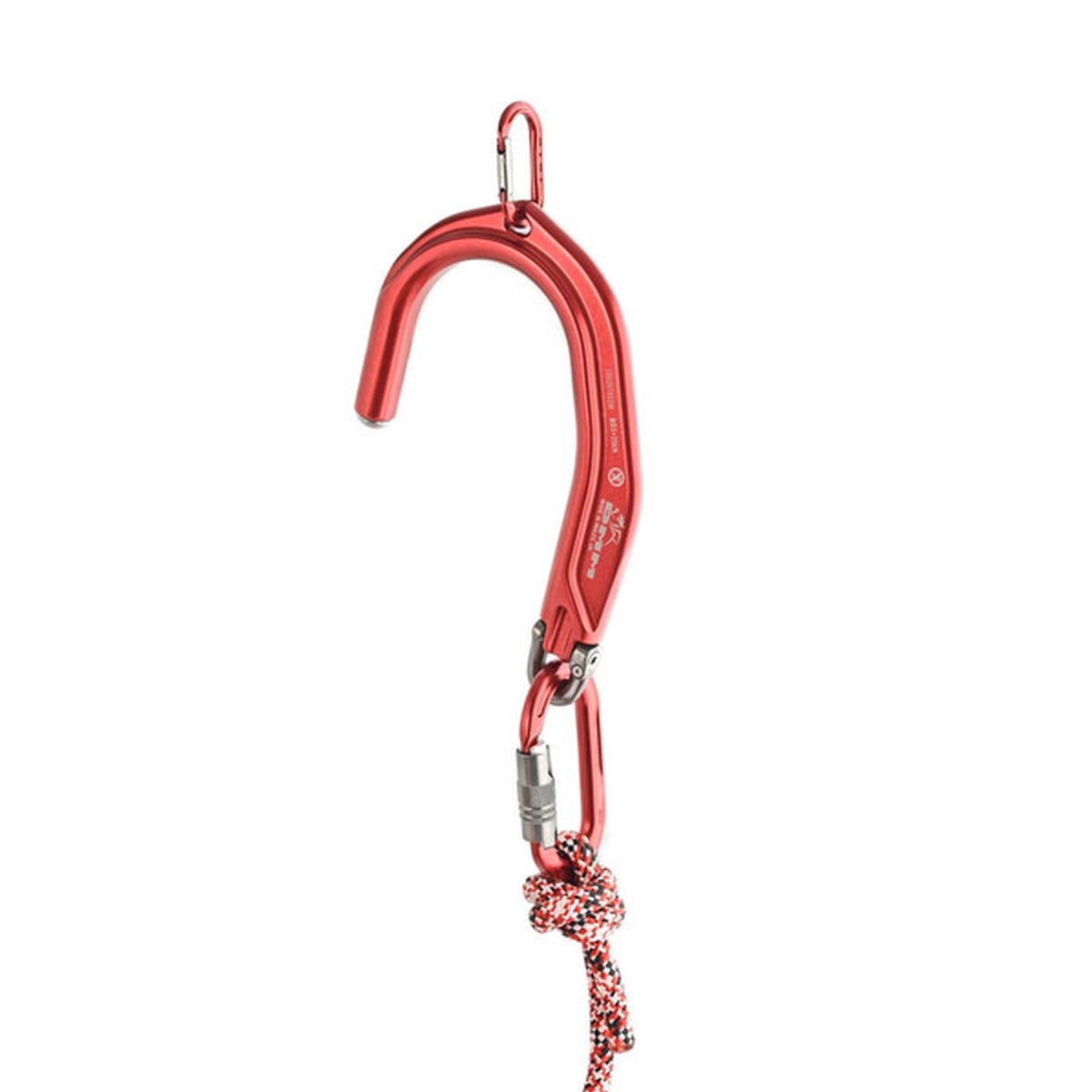

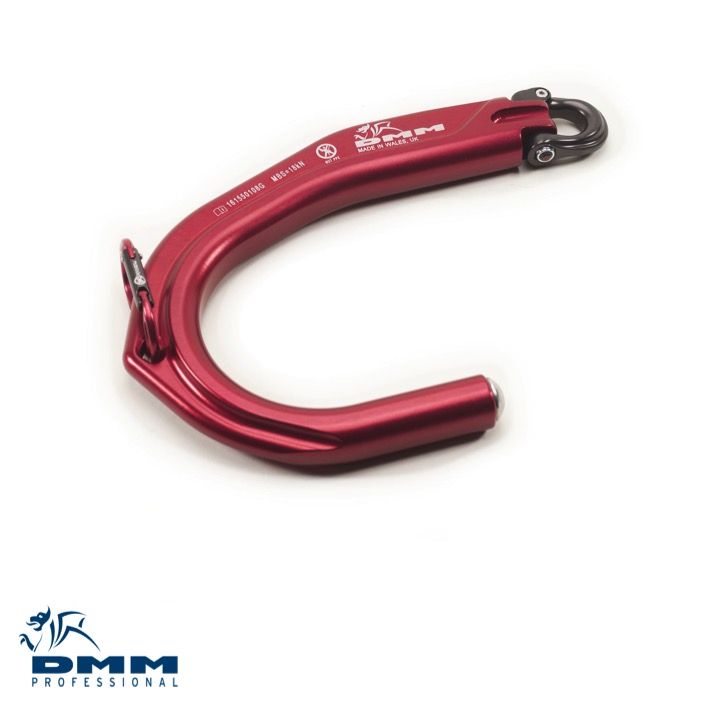

CAPTAIN

The Captain is a self-orientating, high strength throwing hook that is used as a positioning aid. It has been designed to increase stability and create positioning options during complex jobs requiring repositioning.

The shackle reduces torsional friction and allows the hook to pivot onto any anchor up to 90mm in diameter to achieve reliable location. In this way, the Captain allows you to use remote anchors to traverse the workspace in a controlled manner.

Once the anchor has been located, DMM’s high quality engineering ensures the Captain achieves a rated strength of 18kN (dependent on anchor quality). Clever design allows the device to be efficiently racked when the job is done to minimise chances of snagging.

• Self-orientating
• High strength at 18kN
• Snag-free ‘rackabililty’
• Customisable nose weighting
• Textile compatible hot forged connecting D-Shackle
• Also available complete with rope and bag
• Patent pending
• Product Code: TH100

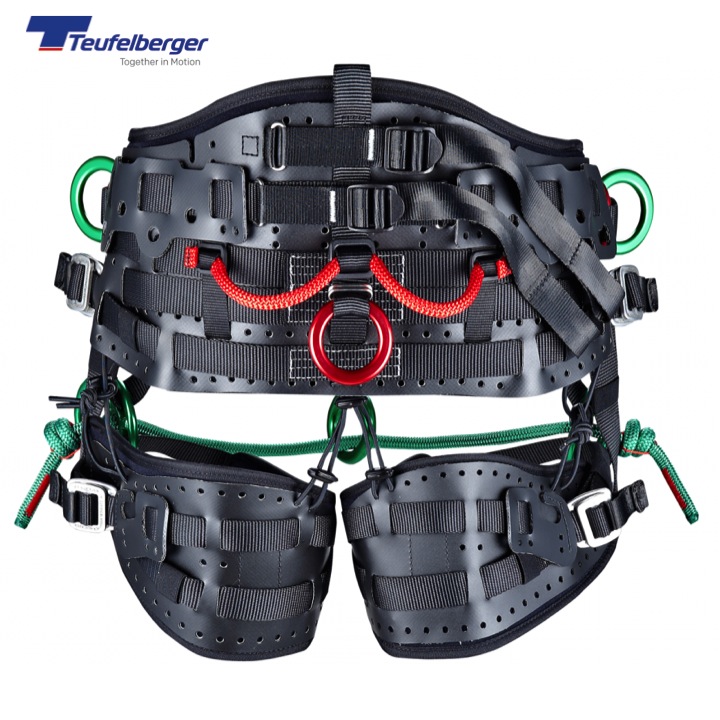

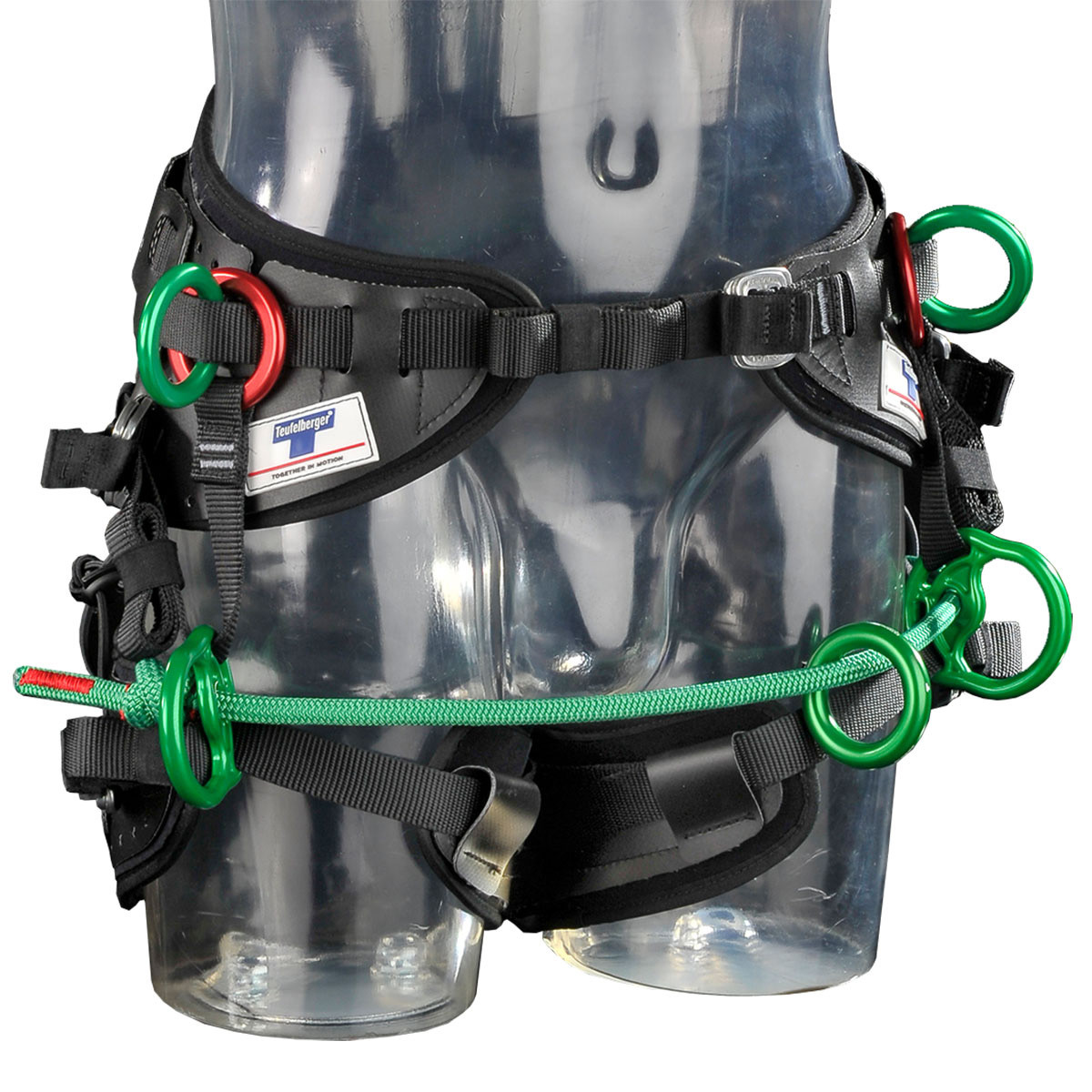

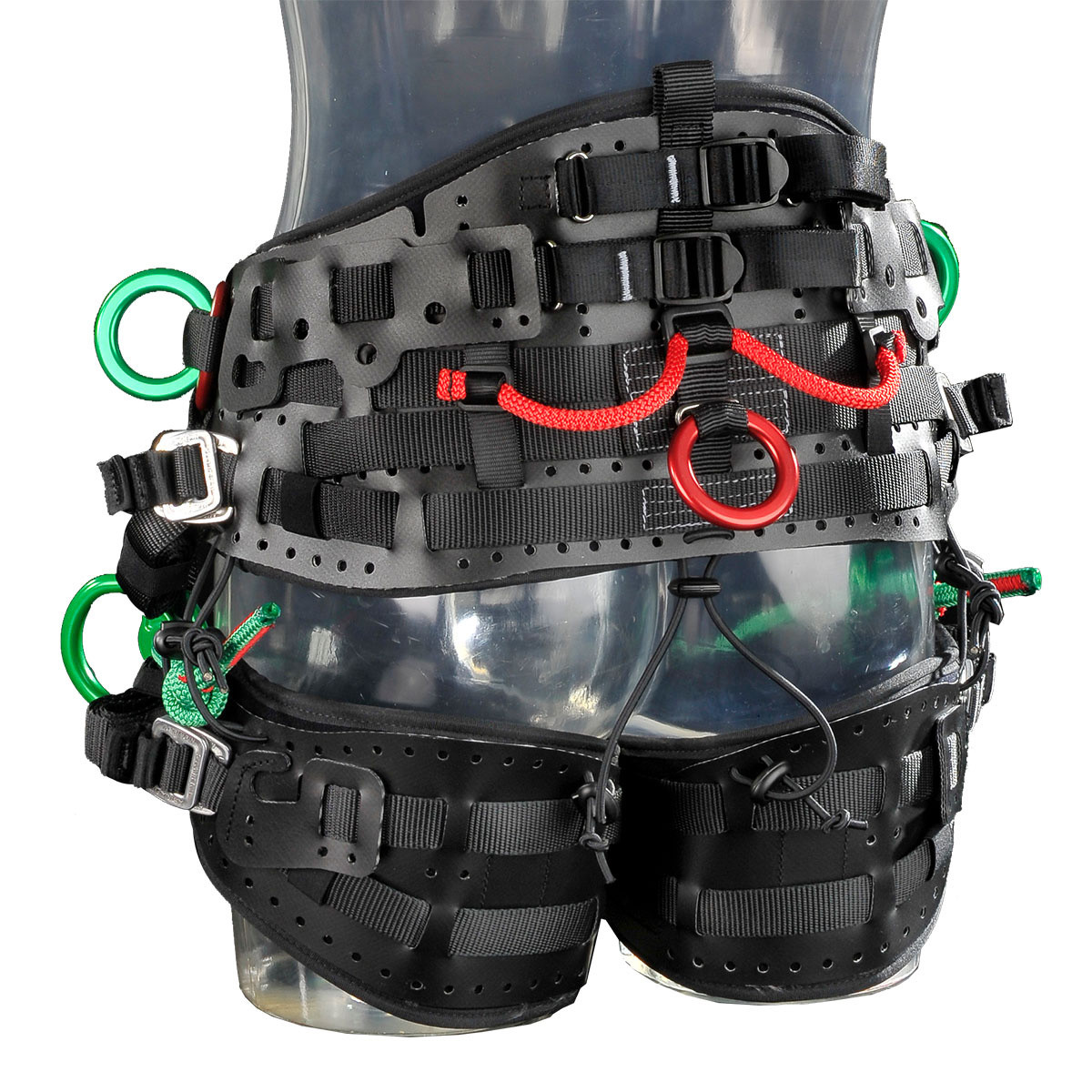

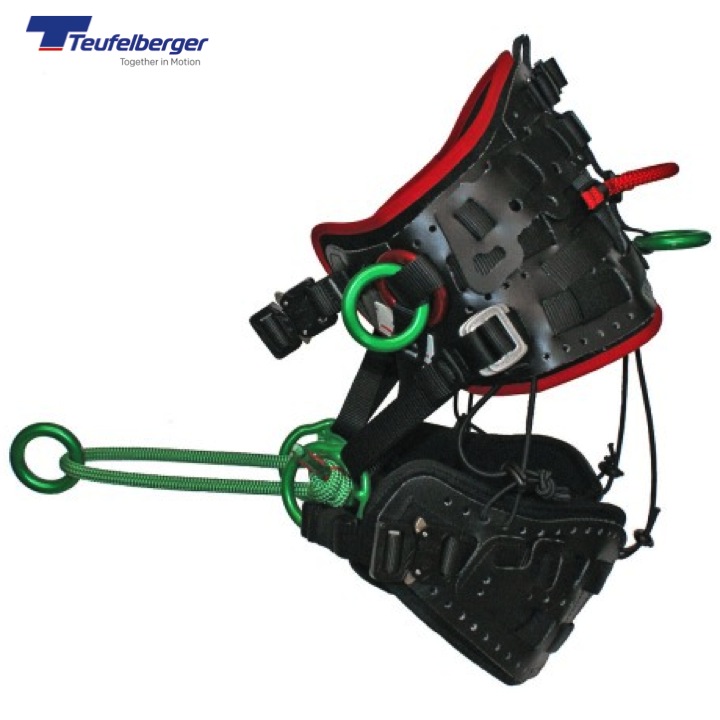

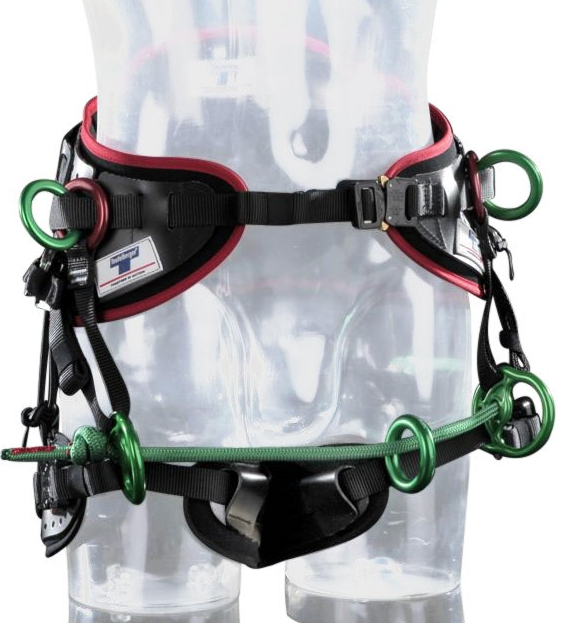

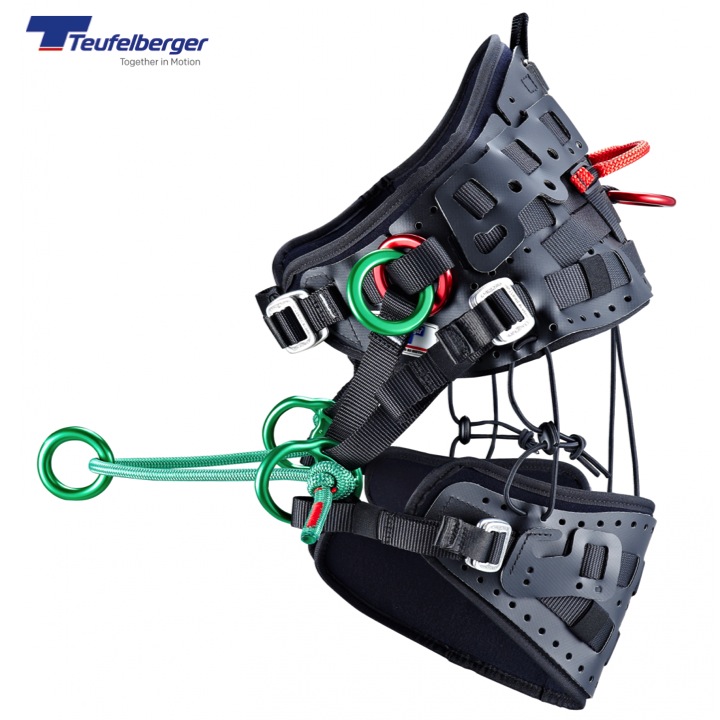

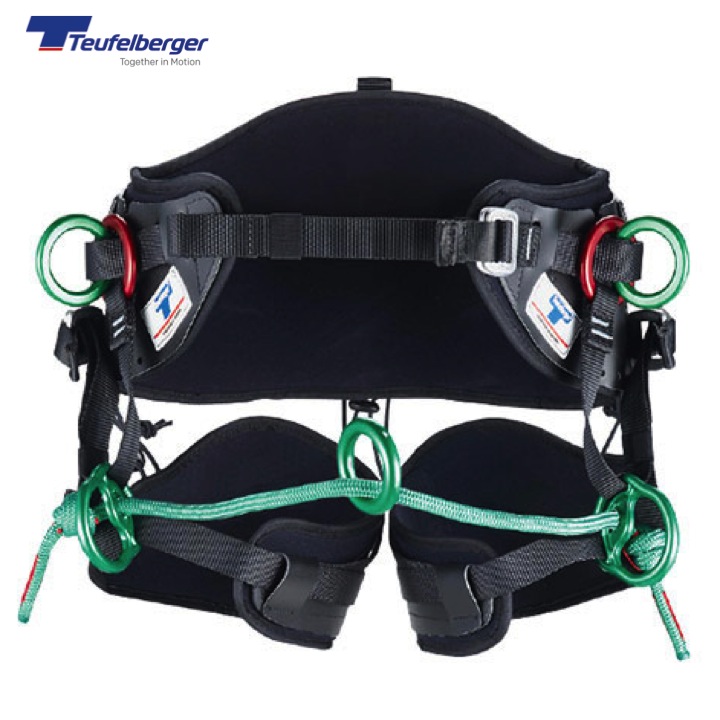

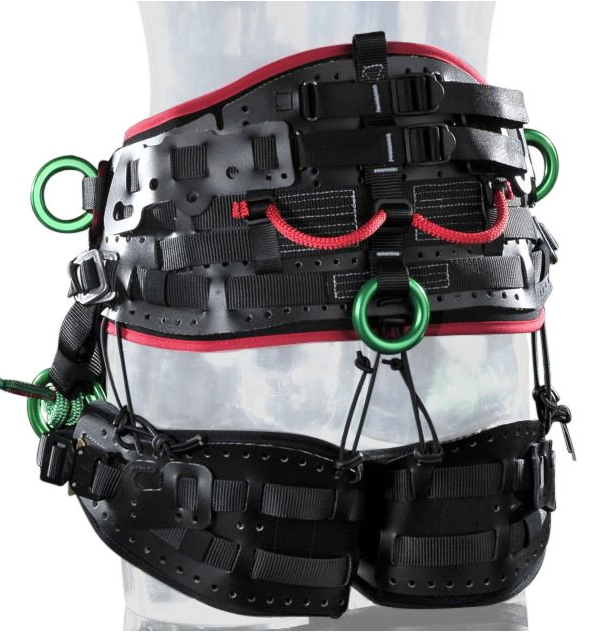

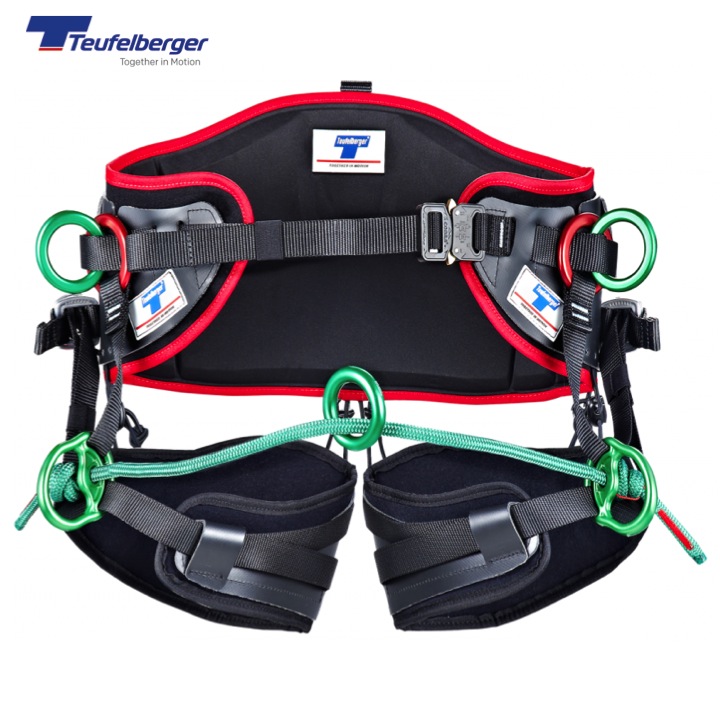

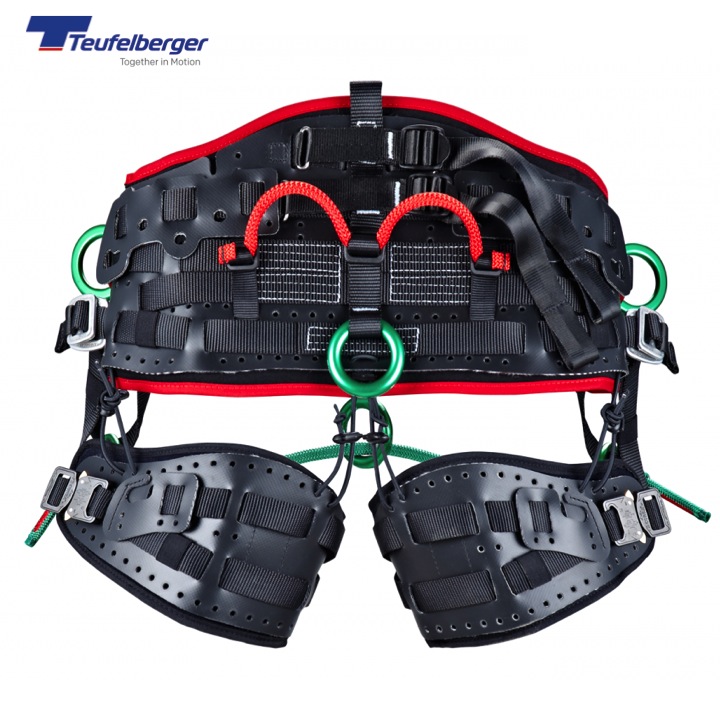

TEUFELBERGER TREEMOTION STANDARD HARNESS

The Teufelberger TreeMotion Standard Harness is lightweight and infinitely adjustable. Can be adjusted to suit almost all sizes. And it supports the widest range of tree climbing techniques and moves. Removable and washable padding, lightweight low profile snaps on the waist and leg, easy adjustable bridge, six Caritool positions including on the leg straps (and over 100 other tool position possibilities to choose from), two heavy duty and vertically adjustable cord loops, first aid kit position with two cinch straps in the lumber area, load bearing chainsaw ring and double D-rings to disperse the weight.

Saddle Sizing

• 1 size only
• Waist: 30-38”
• Thigh: 28-32”

Additional Features

• Lightweight
• Weighs 4.6 lb
• Comfortable
• Fully customizable
• Quick-connect buckles

• PPE Rated Rear Ring.
• COMFORT Back Padding as standard.
• Safety Stitched ends on Rope Bridge.
• Rated lower D rings
• Rated to 120kg up from 100kg.
• Certified Standards: EN 358/813, ANSI Z133-2012.

TEUFELBERGER TREEMOTION SUPER LIGHT HARNESS

The Teufelberger TreeMotionSuper Light Harness is the light version of the popular treeMOTION harness.

The Super Light (S.Light) version of the well-liked TreeMOTION harness is a new product made by TEUFELBERGER in collaboration with the Treemagineers.

The S.light has also been tested to 120 kg and features the safety seams at the ends of the rope bridge. The rear ring on this harness model continues to be red and is thus only suited to attach gear.The thinner material and the lighter readjusting buckles make this harness extremely lightweight and, as a result, suited for tasks that require repeated ascending and descending. It adapts perfectly to your body and does not interfere with your climbing. Its wearers can count on getting the usual high quality and comfort.

Saddle Sizing

• 1 Size fits all
• Hip circumference [cm]: 76-91
• Hip circumference [inch]: 30-36
• Leg circumference [mm]: 52-66
• Leg circumference [inch]: 20.5-26

Additional Features

• Weight: 2kg, 4.4lbs
• Color: Black/Green
• Lightweight
• Comfortable
• Fully customizable
• Quick-connect buckles
• Lighter, less expensive version of the world’s most popular tree saddle
• EU-RL 89/686/EWG for PPE, in dependence on EN 813 and EN 358.
• ANSI Z133.1 201

TEUFELBERGER CLIMBING ROPE

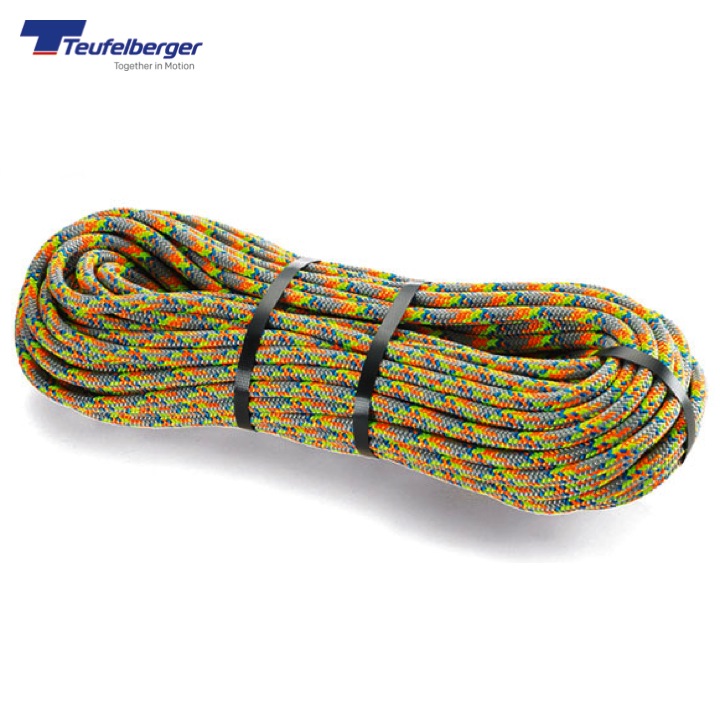

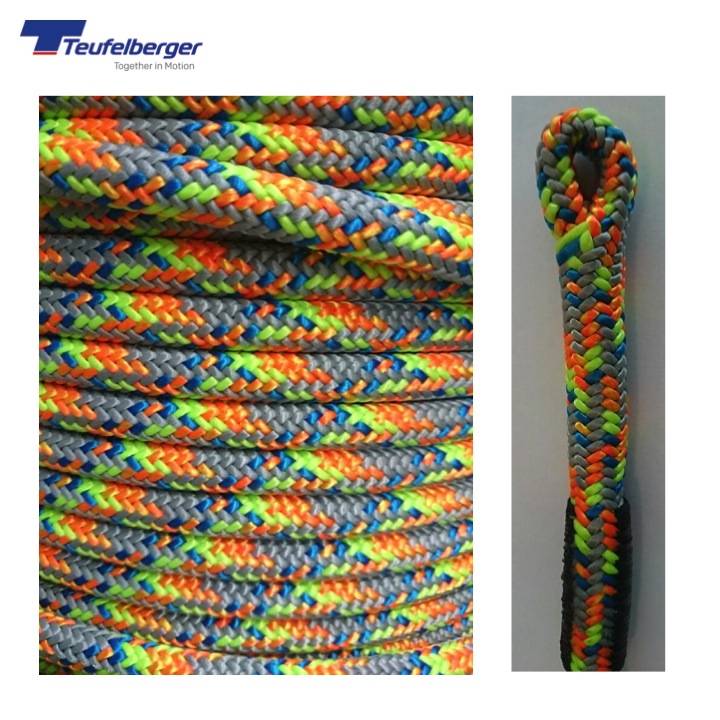

TEUFELBERGER NEW ENGLAND TACHYON CLIMBING ROPE
Slaice is available
Diameter: 11.5mm
MBS: 5900 lbf
Weight: 94 g/m
